Siemens

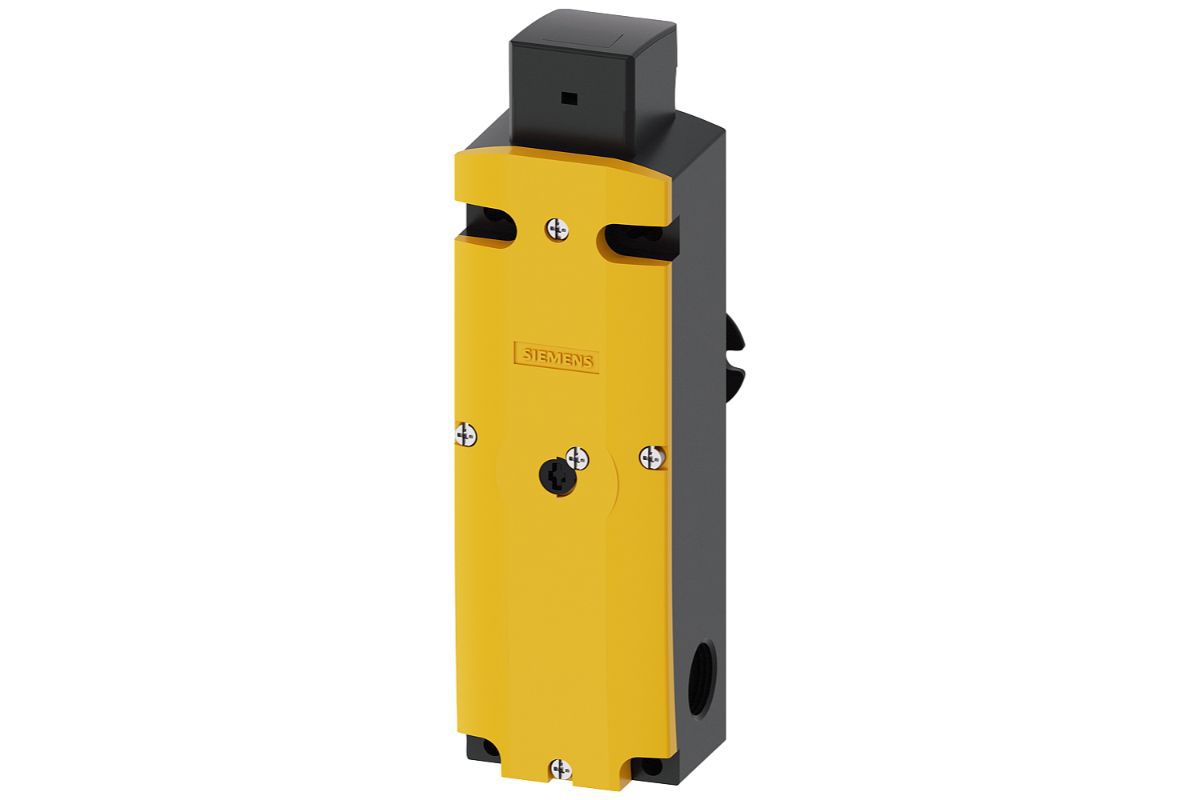

3SE5322-0SG21

INTERLOCK SW, MECH LOCK_SOL UNLOCK, 24VDC
3SE5322-0SG21
  • Get up to 90 days payment terms from 500+ suppliers
  • Reselling discounts up to 40%!
Sign-Up
$449.62
1
Payment methods:
A total of 11 Parts In-Stock from 21 Distributors

Additional Information

Part Number
3SE5322-0SG21
UPC
754554951898
Tariff Code
8536509055
Country of Origin
DE
ETIM
Group Code : EG000026
Group Description : Sensors
Class Description : Position switch with guard locking
Class Code : EC002593
Version : 7

Specifications

Country of Origin
DE
Width sensor
54 mm
Length of sensor
185 mm
Type of interface
None
Height of sensor
43.5 mm
Coating housing
Uncoated
Material housing
Plastic
With escape release
true
Guard locking force
1300 N
Degree of protection (IP)
IP65
Suitable for safety functions
true
Number of safety auxiliary contacts
4
Explosion safety category for gas
None
Explosion safety category for dust
None
Number of contacts as change-over contact
0
Rated operation current Ie at AC-15, 24 V
6 A
Rated operation current Ie at DC-13, 24 V
3 A
Type of switching contact
Slow-action switch
Construction type housing
Special construction
Ambient temperature during operating
-25 °C
Type of interface for safety communication
None
Rated operation current Ie at DC-13, 125 V
0.55 A
Type of electric connection
Cable entry metrical
Type of guard locking
Quiescent current principle
Rated control supply voltage Us magnet drive at DC
24 V
