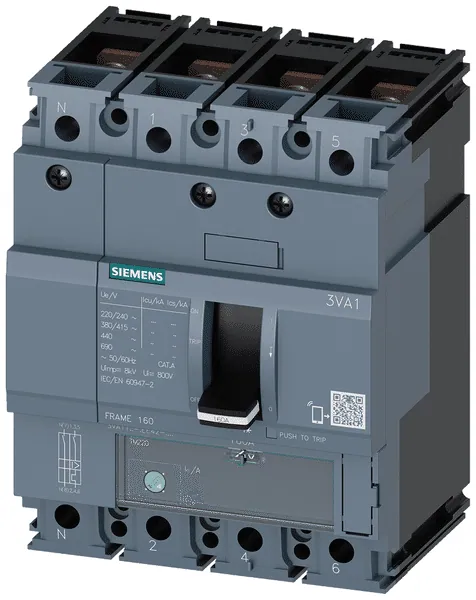

Siemens 3VA1196-3EE42-0AA0
3VA11 4P 16A 25KA ATFM NUT
Product Description
The 3VA11 4P 16A 25KA ATFM NUT is a low voltage molded case circuit breaker designed for effective line protection. This unit features a thermal-magnetic trip mechanism and has a breaking capacity classified as low (Class N), with an Icu of 25kA at 415V and a rated voltage of 690V. The device operates with a rated permanent current of 16A, making it suitable for a variety of applications.
Designed with practicality in mind, it includes a connection with a lug terminal and nut keeper for secure installation. The dimensions of the device measure 4 x 5.1 x 3.5 inches, allowing for compact integration into electrical systems. The overload protection is adjustable, with a range of 11A to 16A for Ir, and a short-circuit protection setting of 20 times In, ensuring reliability and safety in diverse operating conditions. Furthermore, it complies with IEC standards, confirming its utility in industrial environments.
Offer details
- Offer from:
Trusted supplier — Germany, member since 2024 - Availability:
- On requestLead time: 5 days
- Warranty:
- Not specified
- Condition:
- New Factory Sealed
Specifications
- Brand
- Siemens
- Number of poles
- 4
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 16 A
Available Offers
(2)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time: 5 days | SupplierGermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA1196-3EE42-0AA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 16-09-2026
