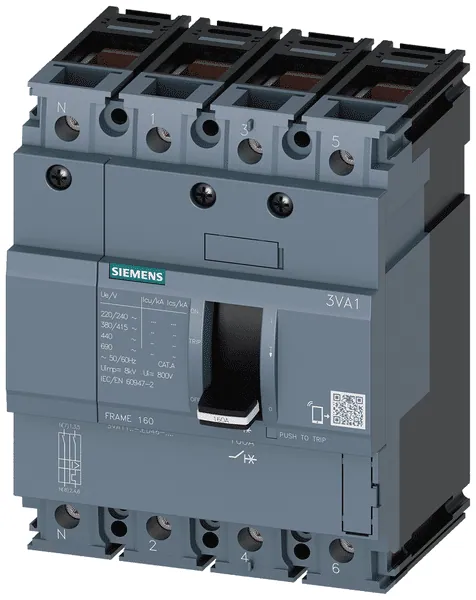

Siemens 3VA1196-5ED46-0AA0
3VA11 4P 16A 55KA FTFM BOX
Product Description
The 3VA11 4-pole circuit breaker is engineered for low voltage applications, featuring a thermal-magnetic trip unit. It is classified under medium breaking capacity (Class M) and supports a rated current of 16A. With an impressive short-circuit breaking capacity of 55kA at 415V and 10kA at 690V, it ensures reliable protection in various operational environments.
Equipped with a TM210 trip unit, this device offers fixed overload protection at 16A and short-circuit protection at a setting of 20 times the rated current. The connection method incorporates a box terminal with a steel wrap-around lug for secure installation. Dimensions are compact at 4 x 5.1 x 3.5 inches.
Additional specifications include an IP40 degree of protection, making it suitable for a range of industrial applications. The device is designed for built-in installation and does not include integrated earth fault protection or under voltage release. It also features a rocker lever as the control element and is fixed for DIN rail mounting.
Offer details
- Offer from:
Trusted supplier — Germany, member since 2024 - Availability:
- On requestLead time: 5 days
- Warranty:
- Not specified
- Condition:
- New Factory Sealed
Specifications
- Brand
- Siemens
- Number of poles
- 4
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 16 A
Available Offers
(2)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time: 5 days | SupplierGermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA1196-5ED46-0AA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 16-09-2026
