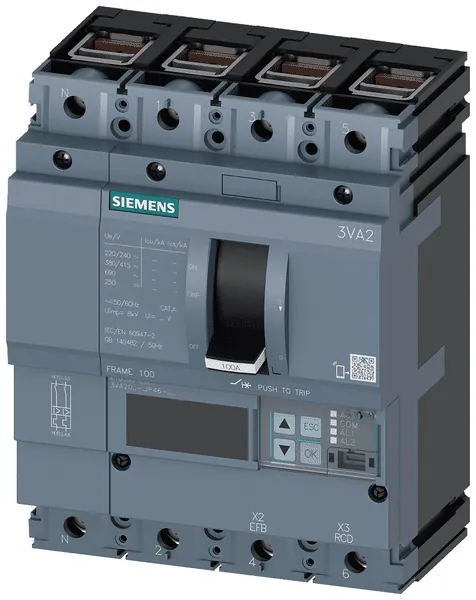

Siemens 3VA2010-8JP46-0AA0
3VA20 4P 100A 150KA ETU5-LSI BOX Circuit Breaker
Product Description
The 3VA20 circuit breaker, designed for low voltage applications, includes a sophisticated electronic trip unit (ETU550) with an LCD display, enhancing its functionality for line protection. With a rated permanent current (Iu) of 100A and an exceptional breaking capacity classified as Class L, this device can handle short-circuit currents up to 150kA at 415V and 24kA at 690V, ensuring reliable operation under high-stress conditions.
Measuring 5.5 x 7.1 x 4.2 inches (W x H x D), the breaker is suitable for installation on a DIN rail and features a frame clamp connection for the main circuit. The overload protection is adjustable, ranging from 40A to 100A, and the short-circuit protection offers settings from 0.6 to 10 times the nominal current (In) for enhanced safety measures. Notably, the device does not include integrated earth fault protection or an under-voltage release, focusing instead on robust short-circuit management.
This model is characterized by its durable design, with a degree of protection rated at IP40, making it suitable for various industrial environments.
Need more information?
Offer details
- Offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees - Availability:
- On requestLead time: 21 days
- Warranty:
- Not specified
- Condition:
- New Surplus
Specifications
- Brand
- Siemens
- Number of poles
- 4
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 100 A
Available Offers
(3)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
| Condition New Surplus | Availability On requestLead time: 21 days | SupplierRomaniaTrusted supplier — member since 2023, 1–4 employees | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time: 5 days | Supplier GermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA2010-8JP46-0AA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 21-09-2026
