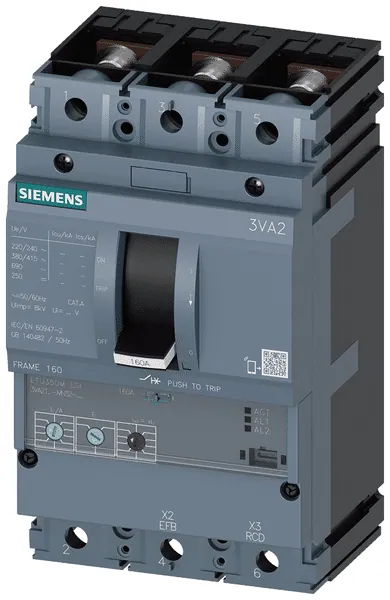

Siemens 3VA2110-7MN32-0AA0 BRKR 3VA21 3P 100A 110KA MCP LSI NUT
1 / 2
Reference Image - Not actual item!
Offer Description
Circuit breaker 3VA2 IEC frame 160 breaking capacity class C Icu=110kA @ 415V 3-pole, motor protection ETU350M, LSI, In=100A overload protection Ir=40A...100A short-circuit protection Isd=3...15 x Ir, Ii=15 x In nut keeper kit
Product Description
Product Life Cycle: Active
SIEMENS LOW VOLTAGE 3VA IEC MOTOR CIRCUIT PROTECTOR WITH ELECTRONIC TRIP UNIT. 3VA21 FRAME WITH VERY HIGH (CLASS C) BREAKING CAPACITY. 100A 3-POLE Icu: (2.5KAIC AT 690V) (110KAIC AT 415V). ETU350M TRIP UNIT LSI. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 4.1 x 7.1 x 4.2.
Product Details
- Country of Origin
- CZ
- Part Number
- 3VA2110-7MN32-0AA0
- Tariff Code
- 85362090
- EAN
- 4042948831267
- UPC
- 804766435393
≈
$754.29
excl. taxSupplier Price
€692.01
€768.90
Shipping from:
€140.00
1
Offer details
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 18-03-2025
- Warranty:
- 24 months
- Estimated Delivery:
- 24-28 March to United States
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Are you a Supplier?
Join 650 suppliers, sell to 3500+ verified buyers.
Policies and Information
Shipping Information
Return & Refund Policies
14 days for return
Secure Payment Process
Warranty Policies
Specifications
- Number of poles
- 3
- Country of Origin
- CZ
- Rated voltage
- 690 V
- Motor drive optional
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 100 A
- Overload release current setting
- 40 A
- Type of control element
- Rocker lever
- Complete device with protection unit
- DIN rail (top hat rail) mounting optional
- Suitable for DIN rail (top hat rail) mounting
- Number of auxiliary contacts as change-over contact
- 0
- Adjustment range undelayed short-circuit release
- 1500 A
- Number of auxiliary contacts as normally open contact
- 0
- Number of auxiliary contacts as normally closed contact
- 0
- Position of connection for main current circuit
- Front side
- Device construction
- Built-in device fixed built-in technique
- Adjustment range short-term delayed short-circuit release
- 300 A
- Type of electrical connection of main circuit
- Screw connection
- Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
- 110 kA
