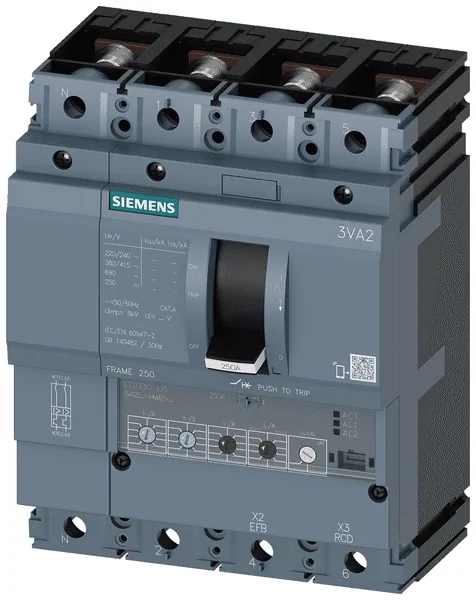

Siemens 3VA2225-5HM42-0AA0
Low Voltage Circuit Breaker 3VA22 250A 4-Pole ETU330-LIG
Product Description
The circuit breaker is part of the 3VA22 frame series, specifically designed for line protection with a rated current of 250A. It operates at a rated voltage of 690V, offering a medium breaking capacity classified as Class M. The device includes an ETU330 electronic trip unit, which provides overload protection adjustable from 100A to 250A and short-circuit protection with a setting range of 1.5 to 10 times the rated current.
Notably, the device features integrated earth fault protection, ensuring enhanced safety. It is suitable for DIN rail mounting and has a degree of protection rated at IP40. The dimensions of the circuit breaker are 5.5 inches in width, 7.1 inches in height, and 4.2 inches in depth. The front-side connection is secured using a screw connection, and the design includes a special nut keeper for connection stability.
This circuit breaker also supports an adjustable N conductor protection setting and is built to meet rigorous standards for low voltage applications.
Need more information?
Offer details
- Offer from:
Trusted supplier — Romania, member since 2023, 1–4 employees - Availability:
- On requestLead time: 21 days
- Warranty:
- Not specified
- Condition:
- New Surplus
Specifications
- Brand
- Siemens
- Number of poles
- 4
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 250 A
Available Offers
(3)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
| Condition New Surplus | Availability On requestLead time: 21 days | SupplierRomaniaTrusted supplier — member since 2023, 1–4 employees | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time: 3 days | Supplier GermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA2225-5HM42-0AA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
