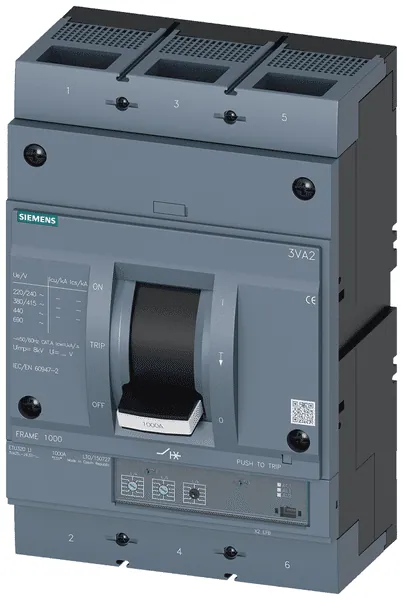

Siemens 3VA2510-5HL32-0AA0

The 3VA25 3P 1000A 55KA ETU320-LI Circuit Breaker is designed for low voltage applications and adheres to IEC standards. With a rated current of 1000 A and a medium low breaking capacity (Class M), this device is suitable for various industrial environments. Its breaking capacity is rated at 55 kA at 415 V and 25 kA at 690 V, ensuring reliable operation and safety.

This circuit breaker incorporates an ETU320 electronic trip unit with overload protection settings ranging from 400 A to 1000 A and a short-circuit protection adjustment range of 1.5 to 10 times the rated current. The device is designed to accommodate front-side connections via a screw connection, featuring a nut keeper kit for secure installation.

With dimensions measuring 8.3 x 12.6 x 6.1 inches and a weight of 13.684 kg, it is compatible with DIN rail mounting. The device has an IP40 protection class, suitable for operation in environments with temperatures ranging from -25 °C to 70 °C. It is constructed as a built-in device with fixed mounting techniques, ensuring durability and reliability in demanding applications.
