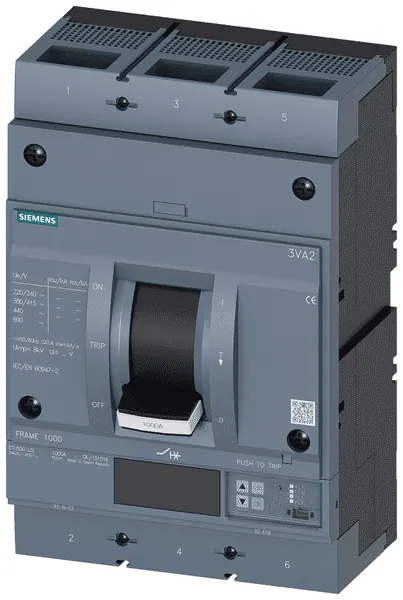

Siemens 3VA2510-6JP32-0AA0
3VA25 3P 1000A 85KA ETU5-LSI NUT
Product Description
The 3VA25 molded case circuit breaker is engineered for low voltage applications, providing reliable protection with a rated current of 1000A. This device is configured with three poles and a medium breaking capacity classified as Class H, ensuring effective interruption of fault currents up to 85kA at 415V and 35kA at 690V.
Equipped with the ETU550 electronic trip unit, this breaker features an LCD display and offers overload protection settings ranging from 400A to 1000A. Short-circuit protection is adjustable with settings from 0.6 to 10 times the rated current, as well as an instantaneous short-circuit release setting from 1.5 to 10 times the rated current.
The device is designed for front-side connection and provides IP40 protection. It can be mounted on DIN rails and has a compact form factor with dimensions of 8.3 x 12.6 x 6.1 inches.
Additionally, it includes a nut keeper kit for secure connections, making it suitable for various industrial applications.
Offer details
- Offer from:
Trusted supplier — Germany, member since 2024 - Availability:
- On requestLead time: 5 days
- Warranty:
- Not specified
- Condition:
- New Factory Sealed
Specifications
- Brand
- Siemens
- Number of poles
- 3
- Rated voltage
- 690 V
- Motor drive optional
- Motor drive integrated
- Degree of protection (IP)
- IP40
- Rated permanent current Iu
- 1000 A
Available Offers
(2)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Factory Sealed | Availability On requestLead time: 5 days | SupplierGermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 3VA2510-6JP32-0AA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 16-09-2026
