4AM4342-8DN00-0EB0

1 / 1

Description

ActiveRoHS Compliant

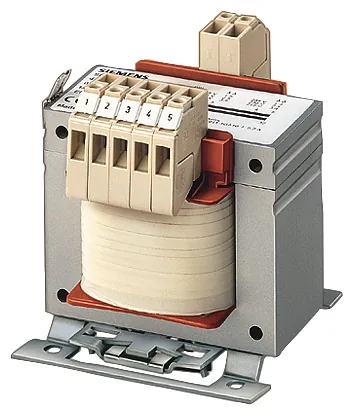

ISOLATING TRANSFORMER< CIRCUIT TRANSFORMER< >SAFETY EN 61558-2-2, -2-6 >CONTROL INSTALLATION:MOUNTING RAILS; CONNECTION; TERMINALS:SCREW/TAB TA/ISOKL:40 /B; IP00; TYPE OF GR./SHIELD WNG.:II0 /0; F(HZ):50...60; VECTOR USEC(V):24; ISEC(A):13,1; 440-415-400-380-230-208; UPRI(V):550-525-500-480-460- PN/PN(S6)(KVA):0,315 /1,12; TRANSFORMER SITAS; PHASES:1;

Country of Origin: CZ
Part Number: 4AM4342-8DN00-0EB0
Tariff Code: 85043180
EAN: 4001869909325
UPC: 754554776880

ETIM

Group Code : EG000017

Group Description : Low-voltage Industrial Components

Class Description : One-phase control transformer

Class Code : EC002486

Version : 7

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

1

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Depth: 120 millimetre
Country of Origin: CZ
Width: 107 millimetre
Height: 111 millimetre
Protection type IP: IP00
Min. primary voltage7: 415 volt
Max. primary voltage 1: 550 volt
Max. primary voltage 2: 525 volt
Max. primary voltage 3: 500 volt
Max. primary voltage 4: 480 volt
Max. primary voltage 5: 460 volt
Max. primary voltage 6: 440 volt
Max. primary voltage 7: 415 volt
Max. primary voltage 8: 400 volt
Max. primary voltage 9: 380 volt
Min. primary voltage 1: 550 volt
Min. primary voltage 2: 525 volt
Min. primary voltage 3: 500 volt
Min. primary voltage 4: 480 volt
Min. primary voltage 5: 460 volt
Min. primary voltage 6: 440 volt
Min. primary voltage 8: 400 volt
Min. primary voltage 9: 380 volt
Max. primary voltage 10: 230 volt
Max. secondary voltage 1: 24 volt
Min. primary voltage 10: 230 volt
Min. secondary voltage 1: 24 volt
Rated performance: 315 volt ampere
Relative short-circuit voltage: 6.5 percent
Insulation Material Class acc. to IEC 85: B
