Siemens
6AG1210-1PE21-2UL0
SIPLUS G120 PM240-2 FSB 7.5kW
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
£952.56
1
Payment methods:
A total of 2 Parts In-Stock from 15 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€1,576.24
Description
ActiveRoHS Compliant

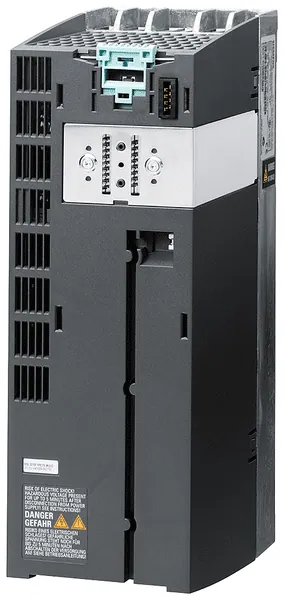

SIPLUS G120 PM 240-2 FSB 7.5kW Power Module PM 240-2 unfilt. -20...+50 °C with conformal coating based on 6SL3210-1PE21-8UL0 . with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 5.5kW at 200% 3s.150% 57s.100% 240s Power rating low overload: 7.5 kW at 150% 3s.110% 57s.100% 240s 291x 100x 165 (HxWxD). FSB Degree of protection IP20 without Control Unit and operating unit Released as of firmware version V4.6Additional Information
- Part Number
- 6AG1210-1PE21-2UL0
- UPC
- 804766724626
- Tariff Code
- 8537109160
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Country of Origin
- DE
- Depth
- 165 mm
- Width
- 100 mm
- Height
- 292 mm
- Mains voltage
- 380 V
- Number of phases input
- 3
- Number of phases output
- 3
- Max. output frequency
- 650 Hz
- Type of converter
- U converter
- Degree of protection (IP)
- IP20
- Nominal output current I2N
- 18 A
- Integrated breaking resistance
- true
- Relative symmetric net frequency tolerance
- 5 %
- Relative symmetric net voltage tolerance
- -10 %
- Max. output at linear load at rated output voltage
- 5.5 kW
- Max. output at quadratic load at rated output voltage
- 7.5 kW
