Siemens 6AG1214-1AF40-5XB0

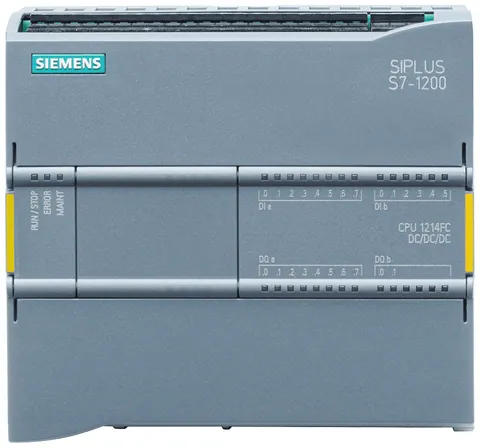

The S7-1200 CPU 1214FC DC/DC/DC, based on the model 6ES7214-1AF40-0XB0, operates effectively within a temperature range of -25 to +60 degrees Celsius. This compact CPU is designed for versatile applications, featuring onboard I/O capabilities including 14 digital inputs (24 V DC), 10 digital outputs (24 V DC), and 2 analog inputs (0-10 V DC). The power supply requirements are DC 20.4-28.8 V, and it has a program/data memory capacity of 125 KB.

With dimensions of 110 mm in width, 75 mm in depth, and 100 mm in height, this unit supports various protocols such as PROFINET and MODBUS, ensuring compatibility with a wide range of industrial systems. Its configuration includes one PROFINET interface and the unit is suitable for safety functions, adhering to performance level e according to EN ISO 13849-1. Additionally, it can be mounted on rails or directly on walls, offering flexibility in installation.

The CPU also features a RAM memory type and does not include a display or redundancy options. It is tailored to meet stringent safety standards, with SIL classification according to IEC 61508 level 3. The device is designed without wireless interfaces, ensuring focused functionality in industrial environments.
