Siemens 6AG1516-3FN02-2AB0

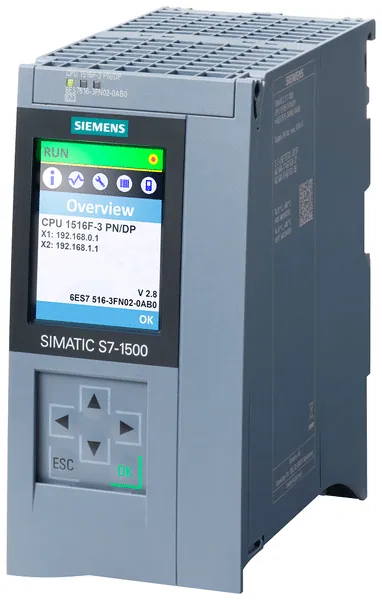

The S7-1500 CPU 1516F-3 PN/DP operates effectively within a temperature range of -40 to +60 °C and is equipped with a conformal coating, ensuring protection in various environments. This central processing unit is designed with a work memory capacity of 1.5 MB for program storage and 5 MB dedicated to data handling. Notably, it supports multiple interfaces, including a PROFINET IRT with a 2-port switch as the first interface, followed by a PROFINET RT and a PROFIBUS interface.

With a bit performance of 10 ns, this CPU demonstrates high processing efficiency. The device requires a SIMATIC Memory Card for optimal operation. The dimensions of the unit are 70 mm in width, 129 mm in depth, and 147 mm in height, allowing for modular integration into existing systems. Additionally, it features two PROFINET interfaces and one RS-485 interface, enhancing its connectivity options.

This model complies with safety standards, achieving a SIL rating according to IEC 61508 of level 3, which makes it suitable for applications requiring safety functions. The supply voltage for operation is 19.2 V DC, and the system is categorized under explosion safety for gas as ATEX gas-ex-protection, Cat. 3G.
