Siemens 6AV2128-3MB36-0AX0

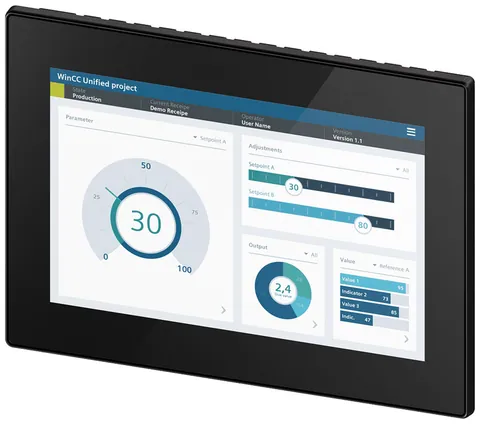

The HMI MTP1200 Unified Comfort Panel is designed for versatile industrial applications, featuring a 12.1-inch TFT display with a resolution of 1280 x 800 pixels and a color depth of 16.7 million colors. It supports touch input, including multi-touch functionality, and is configurable through WinCC Unified Comfort V16.

With a built-in depth of 64 mm and dimensions of 326 mm x 237 mm for the front panel, this device is suitable for various mounting positions. It operates on a supply voltage of 19.2 V to 28.8 V DC and consumes a maximum current of 1.3 A. The device is designed to function effectively within an operating temperature range of 0 °C to 50 °C.

Connectivity is enhanced with two PROFINET interfaces and four USB 3.1 Gen. 1 interfaces. The system supports protocols such as TCP/IP and MODBUS, facilitating integration into existing control systems. The HMI includes functionalities for alarm management, recipe management, and extensive message handling capabilities.

The device maintains a degree of protection of IP65 at the front, ensuring durability in industrial environments. Notable features include an integrated message system, customizable images, and the ability to manage up to 8,000 variables per device.
