Siemens
6AV2145-6GB06-0AA0
- Condition:
- New Surplus
- Available:
- 2 pcs.In-StockUpdated at: 22-11-2024
- Offer from:
Automa.Net Supplier- Estimated Delivery:
- On Request
- Warranty:
- 12 months
1
Siemens
6AV2145-6GB06-0AA0
1 / 1
Description
ActiveRoHS Compliant

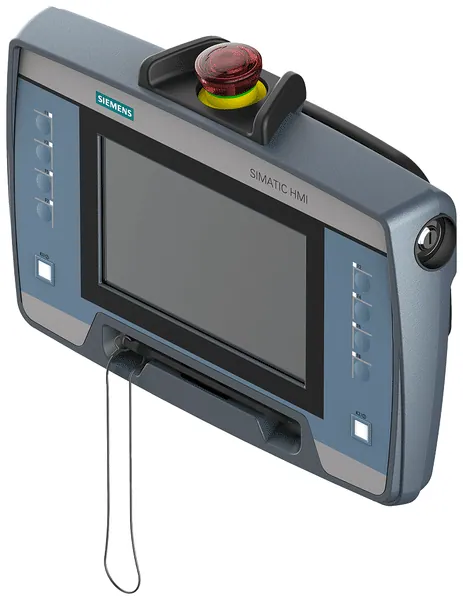

SIMATIC HMI KTP700F Mobile Arctic. (extended operating temperature range). 7.0 TFT display. 800x 480 pixel. 16m colors. key and touch operation. 8 function keys. 1x PROFINET/Industrial Ethernet interface. 1x multimedia card. 1x USB. 1x touch pen. keyswitch. acknowledgement button. emergency shutdown/stop button. configurable from WinCC Comfort V15 SP1- Country of Origin
- DE
- Part Number
- 6AV2145-6GB06-0AA0
- Tariff Code
- 85371091
- EAN
- 4047618114404
- UPC
- 195125074002
Payment methods:
- Best offer from:
Trusted Automa.Net Supplier- Availability:
- 1 pc.In-StockUpdated at: 22-11-2024
- Warranty:
- 12 months
- Estimated Delivery:
- On Request
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
A total of 3 Parts In-Stock from 2 Distributors
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies
Available Offers (1)
Yes, we can repair!
We work with over 120 repair companies in Europe to get you the best quote.
Lead time:On Request
You can repair 6AV2145-6GB06-0AA0 for:
€1,483.00
Offer with manufacturer lead time
Ships in:On Request
Best price:
€2,944.42
Specifications
- Depth
- 89 mm
- Height
- 195 mm
- Width
- 248.4 mm
- With recipes
- true
- Type of display
- TFT
- Weight
- 1.3 kg/m²
- Screen diagonal
- 7 inch
- With touch screen
- true
- Supply voltage DC
- 19.2 V
- With colour display
- true
- Connection, pluggable
- true
- Number of system buttons
- 0
- Number of buttons with LED
- 8
- Number of password levels
- 50
- With message indication
- true
- Number of HW-interfaces USB
- 1
- Number of online languages
- 32
- Degree of protection (IP)
- IP65
- Number of pixels, vertical
- 480
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 1
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Number of pixels, horizontal
- 800
- Operation temperature
- -28 °C
- Suitable for emergency stop
- true
- Country of Origin
- DE
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Suitable for safety functions
- true
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Number of HW-interfaces serial TTY
- 0
- Supporting protocol for PROFIsafe
- true
- Supporting protocol for EtherNet/IP
- true
- Supporting protocol for PROFINET IO
- true
- Number of colours of the display
- 16777216
- Number of function buttons, programmable
- 8
- Process default value (input) possible
- true
- Useful project memory/user memory
- 12000 kByte
- Number of HW-interfaces industrial Ethernet
- 1
- Process value representation (output) possible
- true
- With message system (incl. buffer and confirmation)
- true
- Max. height of fall (in accordance with IEC 60068-2-32)
- 1.2 m
