Siemens

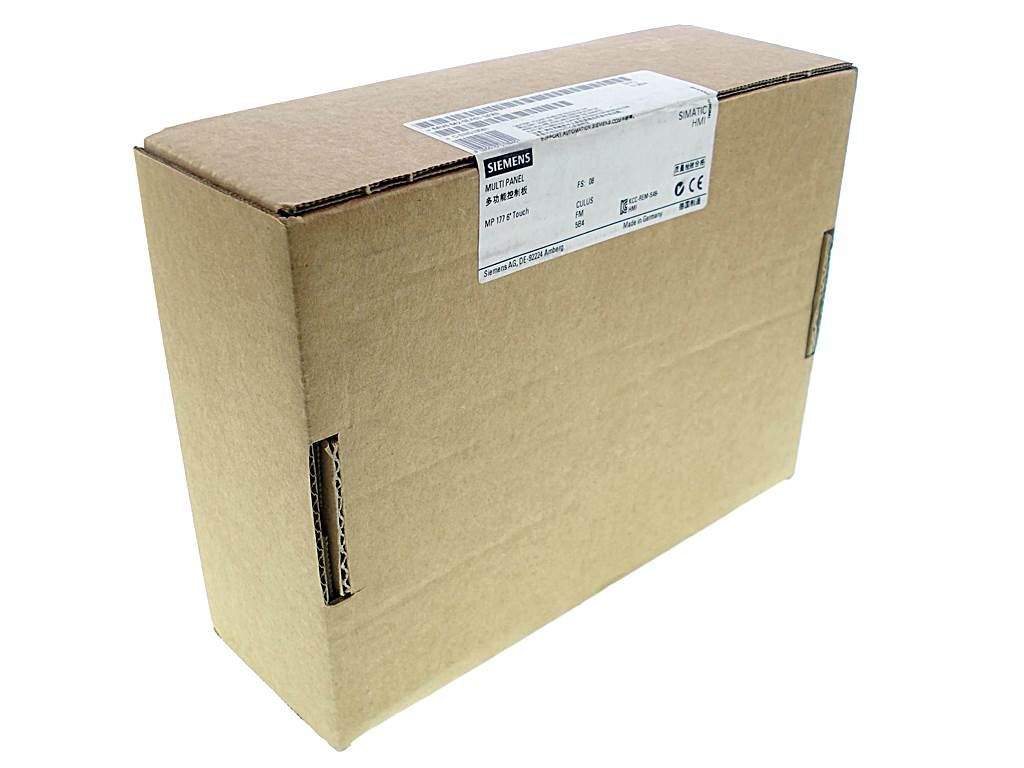

6AV6642-0EA01-3AX0
PANEL MP177-6 RET MEM, WINCC FLX 2008+
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
£824.00
1
Payment methods:
A total of 239 Parts In-Stock from 37 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€1,940.28
Yes, we can repair!
We work with over 120 repair companies in Europe to get you the best quote.
Lead time:On Request
You can repair 6AV6642-0EA01-3AX0 for:
€685.00
Description
Active MatureRoHS Compliant
SIMATIC MP 177 6 TOUCH MULTI PANEL W. RETENTIVE MEMORY 5,7 TFT DISPLAY 2 MB CONFIGURING MEMORY, CONFIGURABLE WITH WINCC FLEXIBLE 2008 STANDARD OR HIGHERAdditional Information
- Part Number
- 6AV6642-0EA01-3AX0
- UPC
- 662643396881
- Tariff Code
- 8537109160
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Graphic panel
- Class Code : EC001412
- Version : 7
Specifications
- Brand
- SIMATIC
- Display type
- TFT
- Supply voltage type
- DC
- Number of grey scales
- 0
- Monitor diagonal
- 5.7 inch
- Formulations present
- true
- Manufacturer name
- Siemens
- Touch screen present
- true
- Number of system buttons
- 0
- Alpha keyboard present
- true
- Display, color present
- true
- Message display present
- true
- Pressure output present
- true
- Width of front
- 212 millimetre
- Number of buttons with LED
- 0
- Height of front
- 156 millimetre
- Number of online languages.
- 5
- Numeric keyboard present
- true
- Installation depth
- 45 millimetre
- Manufacturer product family
- HMI
- Number of HW interfaces, other
- 0
- Description of product type
- MP177
- Number of HW interfaces PROFINET
- 1
- Number of HW interfaces Wireless
- 0
- Number of HW interfaces parallel
- 0
- Min. supply voltage with DC
- 20 volt
- Max. number of pixels, vertical
- 240
- Number of HW interfaces serial TTY
- 0
- Max. supply voltage with DC
- 28.8 volt
- Manufacturer product root
- Multi Panel
- Max. number of pixels, horizontal
- 320
- Number of HW interfaces serial RS232
- 0
- Number of HW interfaces serial RS422
- 1
- Number of HW interfaces serial RS485
- 1
- Number of programmable function keys
- 0
- Number of levels, password protection
- 50
- Degree of protection (IP), front side
- IP65
- Min. operating temperature
- 0 degree_Celsius
- Max. operating temperature
- 50 degree_Celsius
- Process value display (output) possible
- true
- Number of HW interfaces Industrial Ethernet
- 1
- Process value provision (input) possible
- true
- Useable project memory/user memory
- 2000 kilobyte
- Number of colors/shades of gray of the display
- 65536
- Additional software components, loadable present
- true
- Messaging system (including buffer and acknowledgement) present
- true
- Country of Origin
- DE
