Siemens
6AV6647-0AF11-3AX0

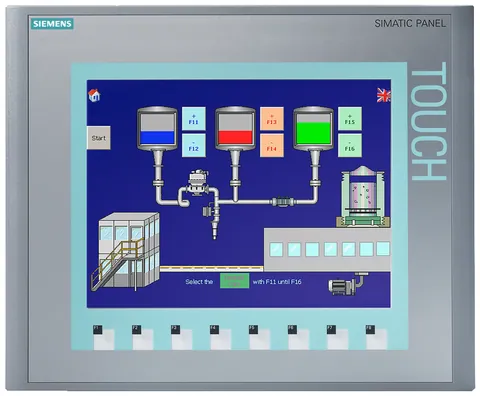

SIMATIC BASIC COLOR PANEL KT 10 TFT
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
$2,673.55
1
Payment methods:
A total of 193 Parts In-Stock from 44 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€2,964.50
Yes, we can repair!
We work with over 120 repair companies in Europe to get you the best quote.
Lead time:On Request
You can repair 6AV6647-0AF11-3AX0 for:
€910.00
Description
Active MatureRoHS Compliant
ASM_OTHER -SIMATICKTP1000BASICCOLORPN10,4 TFTDISPLAY,256FARBENETHERNETS KTP1000 BASIC COLOR PN PANEL 10.4 4:3 TFT DISPLAY WITH 256 COLORS, CCFL BACKLIGHT, KEY AND TOUCH OPERATION, 8 FUNCTION KEYS, ETHERNETAdditional Information
- Part Number
- 6AV6647-0AF11-3AX0
- UPC
- 662643345711
- Tariff Code
- 8537109160
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Graphic panel
- Class Code : EC001412
- Version : 7
Specifications
- Country of Origin
- DE
- With recipes
- true
- Built-in depth
- 60 mm
- Type of display
- TFT
- Supply voltage DC
- 19.2 V
- Screen diagonal
- 10.4 inch
- Width of the front
- 335 mm
- With colour display
- true
- Height of the front
- 275 mm
- Number of system buttons
- 0
- With numeric keyboard
- true
- Number of buttons with LED
- 0
- Number of online languages
- 5
- Number of password levels
- 50
- With message indication
- true
- Number of HW-interfaces USB
- 0
- Number of pixels, vertical
- 480
- Operation temperature
- 0 °C
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 1
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Number of pixels, horizontal
- 640
- With alpha numeric keyboard
- true
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Number of HW-interfaces serial TTY
- 0
- Number of colours of the display
- 256
- Supporting protocol for EtherNet/IP
- true
- Degree of protection (IP), front side
- IP65
- Number of function buttons, programmable
- 8
- Process default value (input) possible
- true
- Useful project memory/user memory
- 2000 kByte
- Number of HW-interfaces industrial Ethernet
- 1
- Number of grey-scales/blue-scales of display
- 0
- Process value representation (output) possible
- true
- With message system (incl. buffer and confirmation)
- true
