Siemens
6AV6647-0AJ11-3AX1

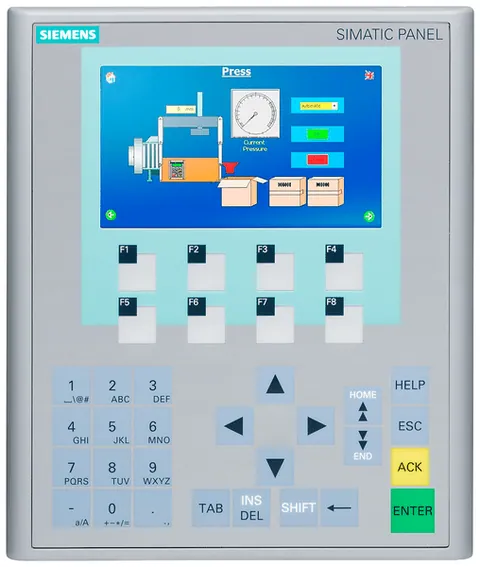

SIMATIC HMI KP400 Basic Color PN
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€315.00
1
Payment methods:
A total of 38 Parts In-Stock from 24 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€346.56
Yes, we can repair!
We work with over 120 repair companies in Europe to get you the best quote.
Lead time:On Request
You can repair 6AV6647-0AJ11-3AX1 for:
€210.00
Description
ActiveRoHS Compliant
SIMATIC HMI KP400 Basic Color PN. Basic Panel. key operation. 4 widescreen TFT display. 256 colors. PROFINET interface. configurable from WinCC Basic V11 SP2/ STEP 7 Basic V11 SP2. contains open-source software. which is provided free of charge see enclosed CDAdditional Information
- Part Number
- 6AV6647-0AJ11-3AX1
- UPC
- 195125287327
- Tariff Code
- 8523494000
- Country of Origin
- DE
Specifications
- Country of Origin
- DE
- With recipes
- true
- Built-in depth
- 33 mm
- Type of display
- TFT
- Touch technology
- None
- Screen diagonal
- 4.3 inch
- Supply voltage DC
- 19.2 V
- Width of the front
- 162 mm
- With colour display
- true
- Height of the front
- 189 mm
- With numeric keyboard
- true
- Number of system buttons
- 14
- Number of buttons with LED
- 0
- Number of online languages
- 5
- Number of password levels
- 50
- With message indication
- true
- Number of HW-interfaces USB
- 0
- Number of pixels, vertical
- 272
- Operation temperature
- 0 °C
- Number of HW-interfaces other
- 0
- Number of interfaces PROFINET
- 1
- Number of HW-interfaces RS-232
- 0
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Number of pixels, horizontal
- 480
- With alpha numeric keyboard
- true
- Voltage type of supply voltage
- DC
- Number of HW-interfaces Wireless
- 0
- Number of HW-interfaces parallel
- 0
- Supporting protocol for MODBUS
- true
- Supporting protocol for TCP/IP
- true
- Number of HW-interfaces serial TTY
- 0
- Number of colours of the display
- 256
- Supporting protocol for EtherNet/IP
- true
- Degree of protection (IP), front side
- IP65
- Number of function buttons, programmable
- 8
- Process default value (input) possible
- true
- Useful project memory/user memory
- 1000 kByte
- Number of HW-interfaces industrial Ethernet
- 1
- Number of grey-scales/blue-scales of display
- 0
- Supporting protocol for other bus systems
- true
- Process value representation (output) possible
- true
- With message system (incl. buffer and confirmation)
- true
