Siemens 6AV7863-6MA00-2NA0

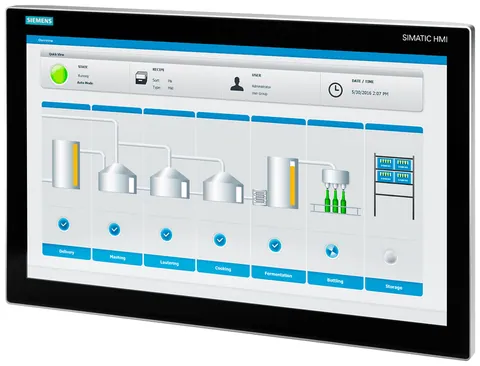

The Flat Panel 19 MT V2 is an integrated multi-touch display characterized by its 18.5-inch TFT screen, which provides a resolution of 1920x1080 pixels with a 16:9 aspect ratio. It operates on a 24 V DC supply voltage and offers interfaces including DisplayPort and DVI.

With a built-in depth of 63.4 mm, the unit is designed for front mounting and is compliant with IP65 standards on the front, ensuring protection against dust and water. The unit's brightness reaches 350 cd/m² with a contrast ratio of 1000:1, allowing for clear visibility in various lighting conditions.

The display supports a wide viewing angle of 178° and is equipped with a multi-touch screen that is projective-capacitive. It integrates mouse cursor control, enhancing user interaction. The display is suitable for installation in environments with ambient temperatures ranging from 0 °C to 50 °C and can operate at altitudes up to 3,500 m above sea level.

This unit adheres to several certifications, including ATEX Zone 2 and IECEx Zone 2, making it suitable for use in hazardous environments. The design also features a neutral finish with aluminum and glass materials, ensuring durability and aesthetic appeal. The model's specifications align with the Designation Code for industrial applications.
