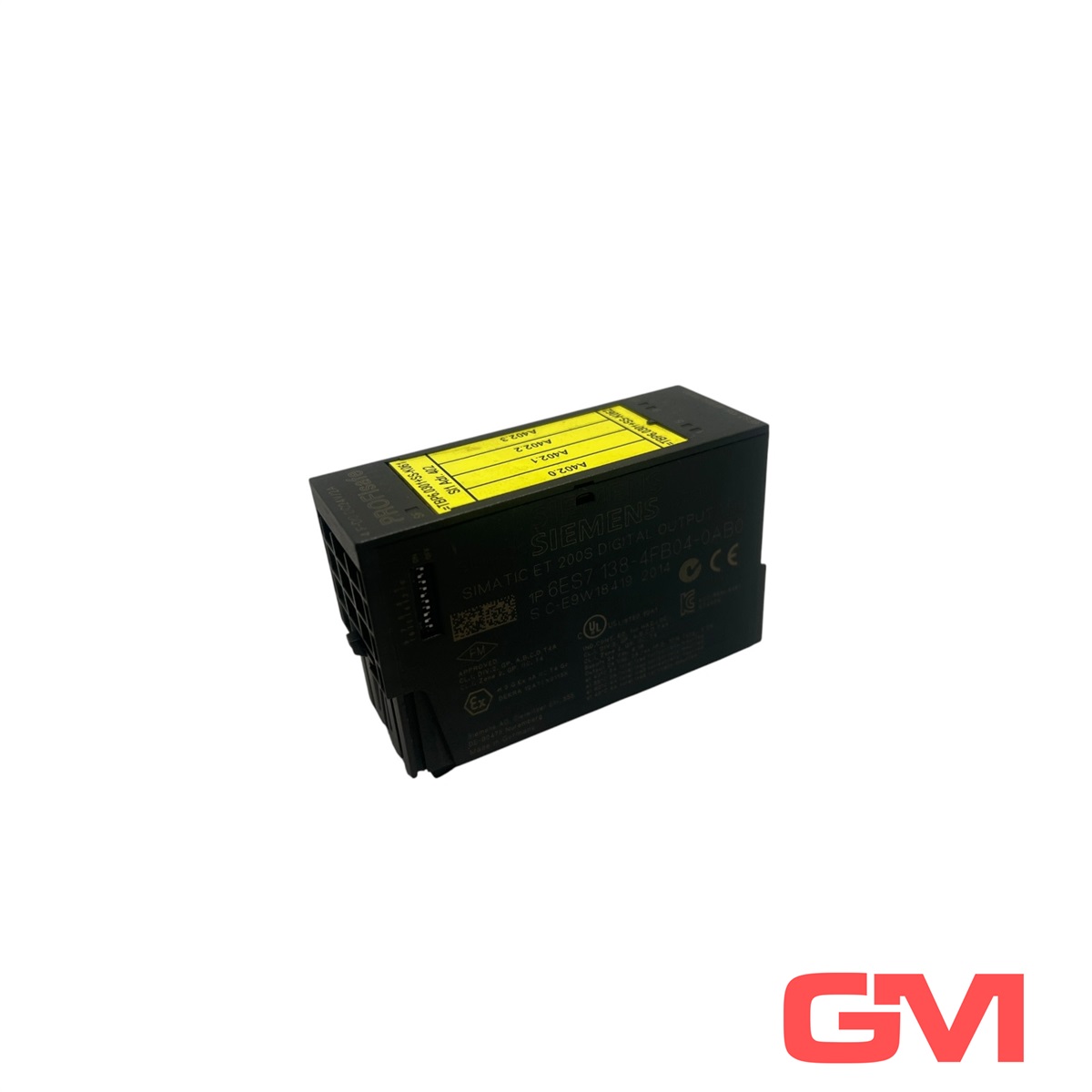

6ES7138-4FB04-0AB0
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Description
Additional Information
- Part Number
- 6ES7138-4FB04-0AB0
- UPC
- 887621781200
- Tariff Code
- 8538903000
- Country of Origin
- DE
- ETIM
- Group Code : EG000024
- Group Description : PLC's
- Class Description : Fieldbus, decentr. periphery - digital I/O module
- Class Code : EC001599
- Version : 7
Specifications
- Brand
- SIMATIC
- Depth
- 52 millimetre
- Number of inputs
- 0
- Width
- 30 millimetre
- Height
- 81 millimetre
- Number of outputs
- 4
- Output current
- 2 ampere
- Output voltage type
- DC
- Supply voltage type
- DC
- Protection type IP
- IP20
- Manufacturer name
- Siemens
- Max. perm. voltage
- 29 volt
- Number of inputs, digital
- 0
- Number of outputs, digital
- 4
- Functional safety (SIL)
- SIL 3
- System components present
- true
- Number of HW interfaces, other
- 0
- Number of HW interfaces PROFINET
- 0
- Number of HW interfaces Wireless
- 0
- Number of HW interfaces parallel
- 0
- Digital outputs, configurable
- true
- Min. supply voltage with DC
- 20 volt
- Suitable for safety functions
- true
- Design of digital output
- Transistor
- Manufacturer product family
- ET 200S
- Bearing track assembly possible
- true
- Number of HW interfaces serial TTY
- 0
- Max. supply voltage with DC
- 28.8 volt
- Category safety pursuant to EN 954-1
- 4
- Number of HW interfaces serial RS232
- 0
- Number of HW interfaces serial RS422
- 0
- Number of HW interfaces serial RS485
- 0
- Min. permissible voltage at output
- 20 volt
- Performance level acc. to EN ISO 13849-1
- E
- Number of HW interfaces Industrial Ethernet
- 0
- Short circuit protection, outputs present
- true
- Manufacturer product root
- Digital module output
- Power loss, static, current-independent [Pls]
- 4 watt
- Design of electrical connection
- Screw/spring connection
- Description of product type
- 4F-DQ 24 V DC/2 A PROFIsafe
- Field bus connection possible via separate bus couplers
- true
- Explosion protected category for dusts
- ATEX dust-ex-protection, Cat. 3
- Explosion protection categories for gases
- ATEX gas-ex-protection, Cat. 3
- Country of Origin
- DE
CAD Models
Additional Information
The Siemens 6ES71384FB040AB0 is a SIMATIC S7-300 series digital input module. It is designed for use in the industrial automation market to connect digital devices to the S7-300 series automation controller. The module is capable of providing 8 digital inputs with a 24V DC voltage and a maximum current of 100mA. It is equipped with a removable terminal block that allows for easy connection and maintenance.
The 6ES71384FB040AB0 is designed with a wide range of protection features, including short-circuit protection and insulation monitoring. The module also has a galvanic isolation between the power supply and the inputs, ensuring that there is no interference between the two. Additionally, the module meets the requirements of EMC, providing a high level of interference immunity.
The 6ES71384FB040AB0 is a reliable and efficient module for connecting digital devices to the S7-300 series automation controller. It is designed for use in harsh environments and is capable of providing 8 digital inputs with a 24V DC voltage and a maximum current of 100mA. The module also offers a wide range of protection features, as well as meeting the requirements of EMC, ensuring a high level of interference immunity.
