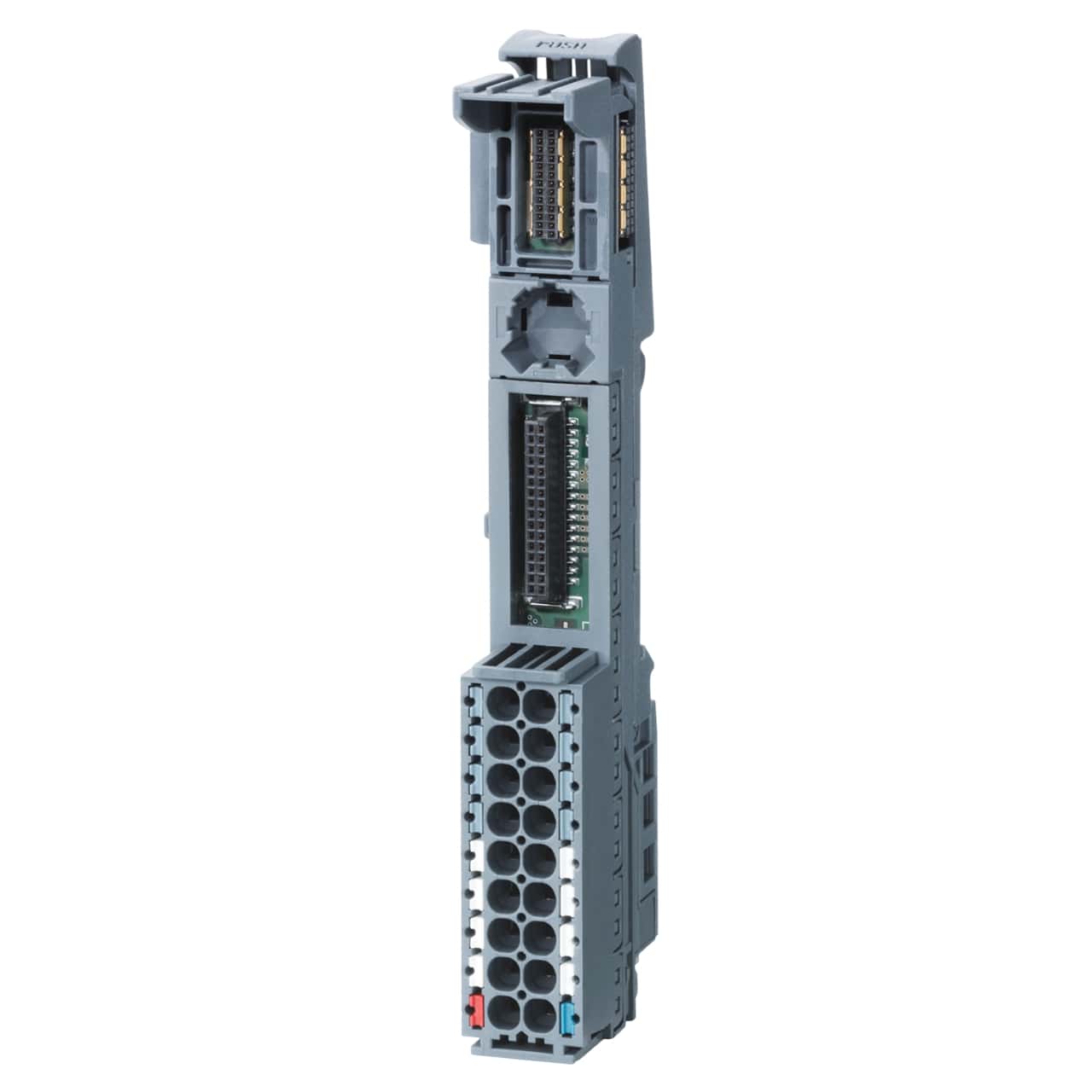

Siemens 6ES7193-6BP00-0BA0

The BU15-P16+A0+2B is designed for industrial automation, featuring push-in terminals and a compact form factor of 15 mm in width and 117 mm in height. It is bridged to the left, thereby eliminating the need for auxiliary terminals, which streamlines the installation process.

This unit operates at a rated supply voltage of 24 V DC and includes external protection for the power supply lines, ensuring safe operation. It accommodates a current carrying capacity of up to 10 A for P1 and P2 bus connections and 2 A for the process terminals, making it suitable for diverse industrial applications.

Incorporating automatic encoding, the unit supports the formation of potential groups, continuing from the left. It has one slot of type A0 and has been tested for isolation at 707 V DC. Compliance with environmental standards is evident, including an ecological footprint declaration and adherence to the RoHS directive.

Designed for extreme conditions, the BU15-P16+A0+2B functions effectively within a temperature range of -30°C to 60°C for horizontal installations and up to 50°C for vertical placements. It is rated for operation at altitudes up to 5000 meters above sea level, subject to specific limitations above 2000 meters.

Additional features include color coding labels for process terminals and support for system-integrated shield connections. The unit can accommodate conductor cross-sections between 0.14 mm² and 2.5 mm² (AWG 26 to AWG 14) and has 16 process terminals per slot, with...
