Siemens

6ES7511-1UK01-0AB0

1 / 2
thumbnail
thumbnail

Description

Active MatureRoHS Compliant

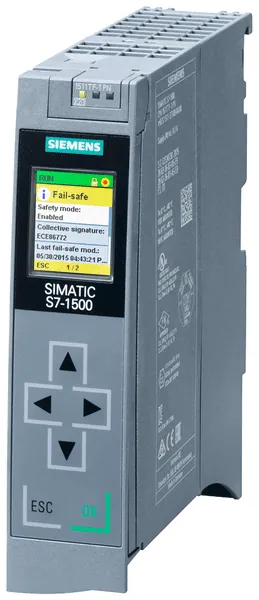

SIMATIC S7-1500T. CPU 1511TF-1 PN. central processing unit with working memory 225 KB for program and 1 MB for data. 1. interface: PROFINET IRT with 2 port switch. 60 ns bit performance. SIMATIC memory card neccessary
Country of Origin
DE
Part Number
6ES7511-1UK01-0AB0
Tariff Code
85371091
EAN
4047623407881
UPC
804766419270
ETIM
Group Code : EG000024
Group Description : PLC's
Class Description : PLC CPU-module
Class Code : EC000236
Version : 7
Payment methods:
Best offer from:
ITTrusted Automa.Net Supplier
Availability:
1 pc.
In-Stock
Updated at: 21-11-2024
Warranty:
12 months
Estimated Delivery:
On Request
Condition:
New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies

Specifications

Country of Origin
DE
Width
35 mm
Depth
129 mm
Height
147 mm
Model
Modular
With display
true
Type of memory
Other
Memory size
1225 kByte
System accessory
true
Supply voltage DC
19.2 V
Number of relay outputs
0
Number of digital inputs
0
Number of analogue inputs
0
Number of digital outputs
0
Rail mounting possible
true
Number of analogue outputs
0
SIL according to IEC 61508
3
Number of HW-interfaces USB
0
Number of HW-interfaces other
0
Number of interfaces PROFINET
1
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Voltage type of supply voltage
DC
Number of HW-interfaces Wireless
0
Number of HW-interfaces parallel
0
Suitable for safety functions
true
Supporting protocol for MODBUS
true
Supporting protocol for TCP/IP
true
Supporting protocol for PROFIsafe
true
Explosion safety category for dust
None
Supporting protocol for PROFINET IO
true
Number of HW-interfaces industrial Ethernet
1
Performance level acc. EN ISO 13849-1
Level e
Processing time (1K, binary operation)
0.06 ms
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G

Related products

3RA2325-8XB30-1AG2

3RA2325-8XB30-1AG2

Siemens
Reversing contactor assembly AC-3, 7.5 kW/400 V,AC110V,50/60Hz 3-pole, Size S0 screw terminal electrical and mechanical Interlock 2 NO integrated
3RF2310-1AA14

3RF2310-1AA14

Siemens
Solid-state contactor 1-phase 3RF2 AC 51 / 10 A / 40 °C 48-460 V / 24 V AC/DC screw terminal
3RH2122-1BF40-1AA0

3RH2122-1BF40-1AA0

Siemens
Contactor relay, 2 NO + 2 NC, 110 V DC, Size S00, screw terminal upright mounting position
3RH2140-1AB00

3RH2140-1AB00

Siemens
Contactor relay, 4 NO, 24 V AC, 50 / 60 Hz, Size S00, screw terminal
3RK1325-6KS71-3AA3

3RK1325-6KS71-3AA3

Siemens
SIRIUS motor starter M200D AS-i Communication: AS-Interface Reversing starter standard Electronic switching AC-3, 0.75KW / 400 V 0.15 A...2.00 A Electronic overload protection Thermistor: THERMOCLICK / PTC with brake contact 400 V AC 4 DI / 1 DO AS-i Han Q4/2 - Han Q8/0 with manual on-site operation and key-operated switch
3RT2025-2AV00

3RT2025-2AV00

Siemens
power contactor, AC-3 17 A, 7.5 kW / 400 V 1 NO + 1 NC, 400 V AC, 50 Hz, 3-pole, Size S0 Spring-type terminal
3RT2027-1BF40

3RT2027-1BF40

Siemens
Power contactor, AC-3 32 A, 15 kW / 400 V 1 NO + 1 NC, 110 V DC 3-pole, size S0 screw terminals
3RT2028-1AR60

3RT2028-1AR60

Siemens
Power contactor, AC-3 38 A, 18.5 kW / 400 V 1 NO + 1 NC, 400 V AC AC (50-60 Hz) / DC 3-pole, Size S0, screw terminals
3RT2035-1AN20

3RT2035-1AN20

Siemens
power contactor, AC-3 40 A, 18.5 kW / 400 V 1 NO + 1 NC, 220 V AC 50 / 60 Hz, 3-pole, Size S2, screw terminal
3RT2317-1BB40

3RT2317-1BB40

Siemens
Contactor, AC-1, 22 A/400 V/40 °C, S00, 4-pole, 24 V DC, screw terminal
3RT2936-1CE00

3RT2936-1CE00

Siemens
Surge suppressor, RC element, 240 ... 400 V AC, for contactors Size S2
3RW5072-6AB15

3RW5072-6AB15

Siemens
SIRIUS soft starter 200-600 V 210 A, 110-250 V AC Screw terminals Analog output
3RW5217-3TC04

3RW5217-3TC04

Siemens
SIRIUS soft starter 200-480 V 38 A, 24 V AC/DC spring-type terminals Thermistor input
3RW5236-6AC15

3RW5236-6AC15

Siemens
SIRIUS soft starter 200-600 V 171 A, 110-250 V AC Screw terminals Analog output
3SE5114-0LA00-1AE3

3SE5114-0LA00-1AE3

Siemens
Basic switch with M12 connector for position switch 3SE51 Metal enclosure 40 mm according to EN 50041. Device connection with M12 connector, 5-pole, fixed 1 NO/2 NC quick action contacts (2 NC and PE connected) Max. 125 V, 4 A Pin1=21, Pin4=22 Pin2=31, Pin5=32 Pin3=PE. Suitable for connection to all SIMATIC ET200* compact block I/O modules.
3SU1001-1AD50-0AA0

3SU1001-1AD50-0AA0

Siemens
Illuminated mushroom pushbutton, 22 mm, round, plastic, blue, 30 mm, momentary contact type
3SU1002-2BF60-0AA0

3SU1002-2BF60-0AA0

Siemens
Selector switch, illuminable, 22 mm, round, plastic, white, selector switch, short, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h
3SU1050-1HG20-0AA0

3SU1050-1HG20-0AA0

Siemens
EMERGENCY STOP mushroom pushbutton, 22 mm, round, metal, shiny, red, 40 mm, with RONIS lock, lock number 455, positive latching, acc. to EN ISO 13850, key-operated release
3SU1050-4BL41-0AA0

3SU1050-4BL41-0AA0

Siemens
RONIS key-operated switch, 22 mm, round, metal, shiny, lock number SB30, with 2 keys, 3 switch positions I-O-II, latching, actuating angle 2x45°, 10:30h/12h/13:30h, Key removal I+II, possible special locks: SB31, 421, 455
3SU1150-4BF11-3FA0

3SU1150-4BF11-3FA0

Siemens
RONIS key-operated switch, 22 mm, round, metal, shiny, lock number SB30, with 2 keys, 2 switch positions O-I, latching, actuating angle 90°, 10:30h/13:30h, key removal O+I, with holder, 1 NO+1 NC, spring-type terminal, possible special locks: SB31, 421, 455

Additional Information

The 6ES75111UK010AB0 from Siemens is a part of their SIMATIC S7-1500 series of industrial automation products. It is an advanced automation system designed for medium and large-scale industrial applications. This product is well suited for users who require a reliable and efficient industrial automation system with high levels of flexibility and scalability.

The 6ES75111UK010AB0 offers a range of features and capabilities, including a wide range of I/O options, a built-in programmable logic controller (PLC) with high-level language support, and integrated communication protocols. The system also has an integrated web server that allows users to access the system remotely. Additionally, it supports a variety of fieldbus protocols for connecting to other industrial automation systems.

The 6ES75111UK010AB0 is a reliable and powerful industrial automation system that is suitable for a wide range of applications. It provides users with a flexible and scalable solution for their automation needs. With its wide range of features and capabilities, this system is a great choice for users who require an efficient and reliable industrial automation system.
