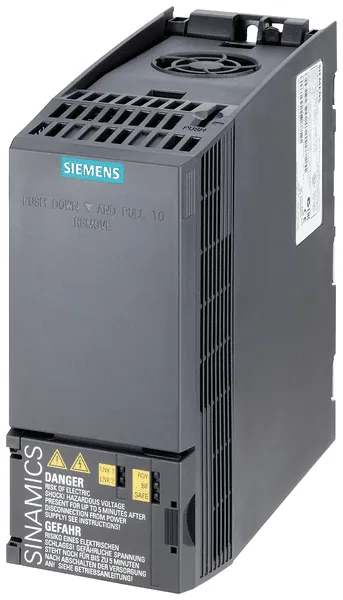

Siemens 6SL3210-1KE13-2UB2

The SINAMICS G120C is a high-performance drive system with a rated power of 1.1KW and an overload capacity of 150% for up to 3 seconds. It operates at 3AC380-480V with a voltage tolerance of +10/-20%, and supports frequencies ranging from 47 to 63Hz. This drive system is unfiltered, offering an I/O interface that includes 6 digital inputs (DI), 2 digital outputs (DO), 1 analog input (AI), and 1 analog output (AO). It also features a safe torque off function for enhanced safety and is equipped with integrated fieldbus communication capabilities, supporting both USS and Modbus RTU protocols. The drive system comes with IP20/UL protection, making it suitable for open-type installations. Its compact size of FSAA 173x73x155(h×w×d) allows for easy installation in various applications.

• Rated power: 1.1KW
• Overload capacity: 150% for up to 3 seconds
• Voltage range: 3AC380-480V with +10/-20% tolerance
• Frequency range: 47-63Hz
• Unfiltered I/O interface: 6DI, 2DO, 1AI, 1AO
• Safe torque off function
• Integrated fieldbus communication: USS/Modbus RTU
• Protection: IP20/UL open type
• Size: FSAA 173x73x155(h×w×d)
