6SL3210-1KE17-5AF1
Descrizione
- Country of Origin
- GB
- Part Number
- 6SL3210-1KE17-5AF1
- Tariff Code
- 85044095
- EAN
- 4042948663820
- UPC
- 887621022839
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
- Migliore offerta da:
Fornitore Automa.Net di fiducia- Disponibilità:
- 6 pz.DisponibileAggiornato il: 07-11-2024
- Garanzia:
- 24 mesi
- Consegna stimata:
- 08-11 novembre a Regno Unito
- Condizione:
- Nuovo sigillato in fabbrica
Specifications
- Country of Origin
- GB
- Width
- 73 mm
- Depth
- 208 mm
- Height
- 196 mm
- Mains voltage
- 380 V
- With PC connection
- true
- Max. output voltage
- 480 V
- Number of phases input
- 3
- Number of phases output
- 3
- Number of digital inputs
- 6
- Max. output frequency
- 550 Hz
- Number of analogue inputs
- 1
- Number of digital outputs
- 2
- Number of analogue outputs
- 1
- Number of HW-interfaces USB
- 1
- Type of converter
- U converter
- Degree of protection (IP)
- IP20
- Nominal output current I2N
- 7.5 A
- Number of HW-interfaces other
- 6
- Number of interfaces PROFINET
- 2
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Number of HW-interfaces parallel
- 0
- Integrated breaking resistance
- true
- Number of HW-interfaces serial TTY
- 1
- Supporting protocol for PROFIsafe
- true
- Supporting protocol for EtherNet/IP
- true
- Supporting protocol for PROFINET IO
- true
- Relative symmetric net voltage tolerance
- 10 %
- Application in industrial area permitted
- true
- Number of HW-interfaces industrial Ethernet
- 2
- Relative symmetric net frequency tolerance
- 5 %
- Supporting protocol for other bus systems
- true
- Max. output at linear load at rated output voltage
- 2.2 kW
- Max. output at quadratic load at rated output voltage
- 3 kW
- Application in domestic- and commercial area permitted
- true
Prodotti correlati
Informazioni aggiuntive

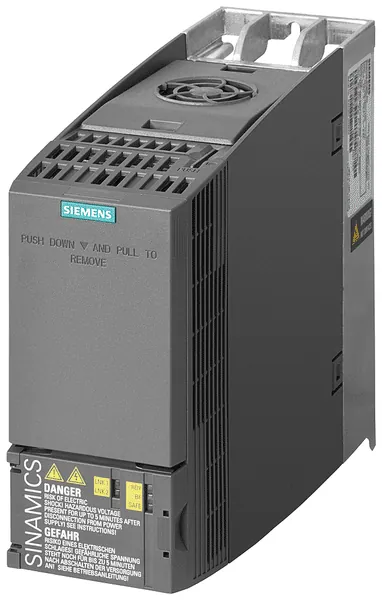

The 6SL32101KE175AF1 from Siemens is a powerful and efficient industrial automation product specifically designed for use in the manufacturing industry. This product features an AC/DC power supply and is capable of providing up to 5 kW of power. It is equipped with both single- and three-phase output, allowing it to be used in a variety of applications.
The 6SL32101KE175AF1 is designed to be extremely reliable and efficient, with its integrated DC link capacitors and a built-in EMC filter. It is built with a robust housing and is resistant to dust and other environmental factors. Its self-cooling system helps to ensure that the product runs at optimum temperature, even when running at high power levels.
This product is designed to be versatile and flexible, with a wide range of connection options. It is equipped with an integrated PLC interface, allowing for easy integration with existing systems. The product also includes a range of additional features such as an LCD display, LED indicators, and input protection. This makes it an ideal choice for industrial automation applications.
