Siemens
6SL3210-1KE21-7AP1

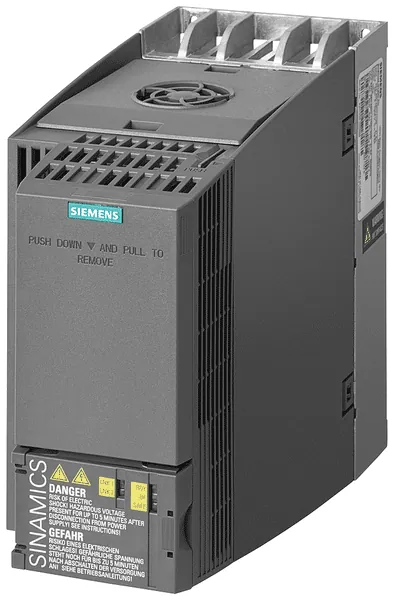

SINAMICS G120C RATED POWER INVERTER
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€815.00
1
Payment methods:
A total of 39 Parts In-Stock from 30 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€797.40
Description
ActiveRoHS Compliant
SINAMICS G120C RATED POWER 7,5KW WITH 150% OVERLOAD FOR 3 SEC 3AC380-480V +10/-20% 47-63HZ INTEGRATED FILTER CLASS A I/O-INTERFACE: 6DI, 2DO,1AI,1AO SAFE TORQUE OFF INTEGRATED FIELDBUS: PROFIBUS-DP PROTECTION: IP20/ UL OPEN TYPE SIZE: FSB 196X100X203(HXWXD) EXTERNAL 24VAdditional Information
- Part Number
- 6SL3210-1KE21-7AP1
- UPC
- 887621085599
- Tariff Code
- 8504409570
- Country of Origin
- GB
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Country of Origin
- GB
- Depth
- 203 mm
- Width
- 100 mm
- Height
- 196 mm
- Mains voltage
- 380 V
- With PC connection
- true
- Max. output voltage
- 480 V
- Number of phases input
- 3
- Number of phases output
- 3
- Number of digital inputs
- 6
- Max. output frequency
- 550 Hz
- Number of analogue inputs
- 1
- Number of digital outputs
- 2
- Number of analogue outputs
- 1
- Number of HW-interfaces USB
- 1
- Type of converter
- U converter
- Degree of protection (IP)
- IP20
- Nominal output current I2N
- 17 A
- Number of HW-interfaces other
- 6
- Number of interfaces PROFINET
- 0
- Number of HW-interfaces RS-232
- 1
- Number of HW-interfaces RS-422
- 0
- Number of HW-interfaces RS-485
- 0
- Number of HW-interfaces parallel
- 0
- Integrated breaking resistance
- true
- Number of HW-interfaces serial TTY
- 1
- Supporting protocol for PROFIBUS
- true
- Application in industrial area permitted
- true
- Number of HW-interfaces industrial Ethernet
- 0
- Relative symmetric net frequency tolerance
- 5 %
- Relative symmetric net voltage tolerance
- -20 %
- Supporting protocol for other bus systems
- true
- Max. output at linear load at rated output voltage
- 5.5 kW
- Application in domestic- and commercial area permitted
- true
- Max. output at quadratic load at rated output voltage
- 7.5 kW
