Siemens 6SL3210-1NE13-1AG1

Name: SINAMICS G120 Power Module PM230 with Class A Filter, IP20 Protection, 1.1kW Output
Brand: Siemens
SKU: 6SL3210-1NE13-1AG1

SINAMICS G120 Power Module PM230 with Class A Filter, IP20 Protection, 1.1kW Output

1 / 2

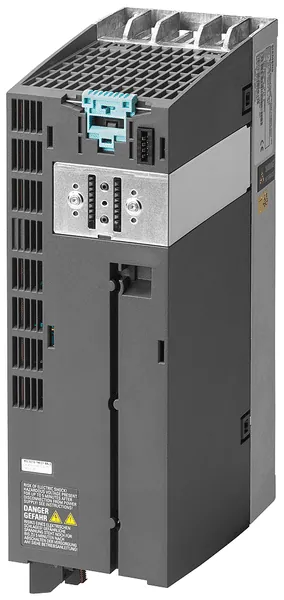

Manufacturer catalogue image

Product Description

RoHS CompliantLifecycle Status:

The SINAMICS G120 Power Module PM230 is a high-performance, reliable power solution designed for demanding industrial applications. Equipped with a built-in Class A filter, it provides efficient protection against electrical noise and interference. The module offers an IP20 degree of protection, ensuring robustness in harsh environments.

With a maximum output of 1.1kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, the PM230 is capable of handling high-power loads with ease. It operates within a voltage range of 380-480 VAC at +10/-10% and frequency of 47-63 Hz.

The module is designed to operate in ambient temperatures ranging from 0 to +40 °C (LO). Its compact dimensions of 196 x 73 x 165 mm (HxWxD) make it ideal for space-constrained installations. The FSA version, without a control unit and panel, is approved for use with CU240B/E-2 and CU230P-2 firmware versions V4.4 or higher.

Need more information?

Call us at:+48 17 778 34 19

Compare offers

Payment methods:

Offer details

Offer from:: Trusted supplier — Czechia, member since 2021, 50–99 employees
Availability:: 1 pc.
In-Stock
Updated at: 20-09-2026
Warranty:: 24 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Siemens
Mains voltage: 380 V
Number of phases input: 3
Number of phases output: 3
Max. output frequency: 550 Hz
Type of converter: U converter
Degree of protection (IP): IP20

Available Offers

(4)

Condition	Availability	Supplier	Warranty
Condition New Factory Sealed	Availability 1 pc. In-Stock Updated at: 20-09-2026	Supplier CzechiaTrusted supplier — member since 2021, 50–99 employees	Warranty 24 months
Condition New Factory Sealed	Availability 1 pc. In-Stock Updated at: 20-09-2026	Supplier PolandTrusted supplier — member since 2023, 50–99 employees	Warranty 24 months
Condition New Surplus	Availability On requestLead time: 20 days	Supplier NetherlandsTrusted supplier — member since 2021, 100–499 employees	Warranty 24 months
Condition New Factory Sealed	Availability On requestLead time: 20 days	Supplier GermanyTrusted supplier — member since 2024	Warranty Not specified

Offer with manufacturer lead time

Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.

Documents

Data Sheet

Datasheet for Siemens 6SL3210-1NE13-1AG1, including specifications and features.

Download Data Sheet

CAD Models

3D CAD model and technical drawings, ready for your design software.

Download CAD Model

Product data updated: 20-09-2026
