Siemens 6SL3210-1KE15-8UP1
SINAMICS G120C DP 2, 2KW UNFIL
1 / 1

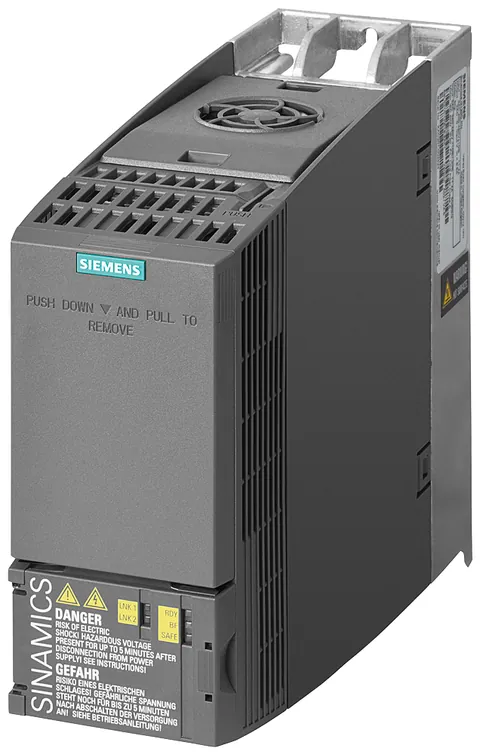

Manufacturer catalogue image
Product Description
Lifecycle Status:Successor:
The SINAMICS G120C is a high-performance drive system designed for industrial applications. With a rated power of 2.2kW, it offers an overload capacity of 150% for up to 3 seconds. The system operates at a voltage range of 380-480V with a fluctuation tolerance of +10/-20%. It supports frequencies from 47 to 63Hz and is unfiltered, providing an I/O interface that includes 6 digital inputs (DI), 2 digital outputs (DO), 1 analog input (AI), and 1 analog output (AO). The system incorporates a Safe-Torque-Off feature for enhanced safety. It also features integrated PROFIBUS DP communication protocol, offering a degree of protection IP20/UL and an open type design. The drive is available in the FSA 196x73x203 (HxWxD) size with an external 24V power supply.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Germany, member since 2024- Availability:
- 3 pcs.In-StockUpdated at: 04-09-2026
- Warranty:
- 24 months
- Condition:
- Refurbished
Refurbished - A refurbished item inspected, cleaned, and repaired to full working order by either the manufacturer or a certified technician. The item is in excellent condition and fully operational.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Siemens
- Mains voltage
- 380 V
- With PC connection
- Max. output voltage
- 480 V
- Number of phases input
- 3
- Number of phases output
- 3
- Number of digital inputs
- 6
