Siemens

6SL3210-1PE24-5UL0

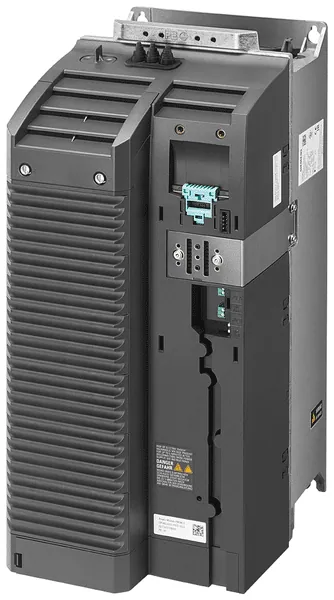

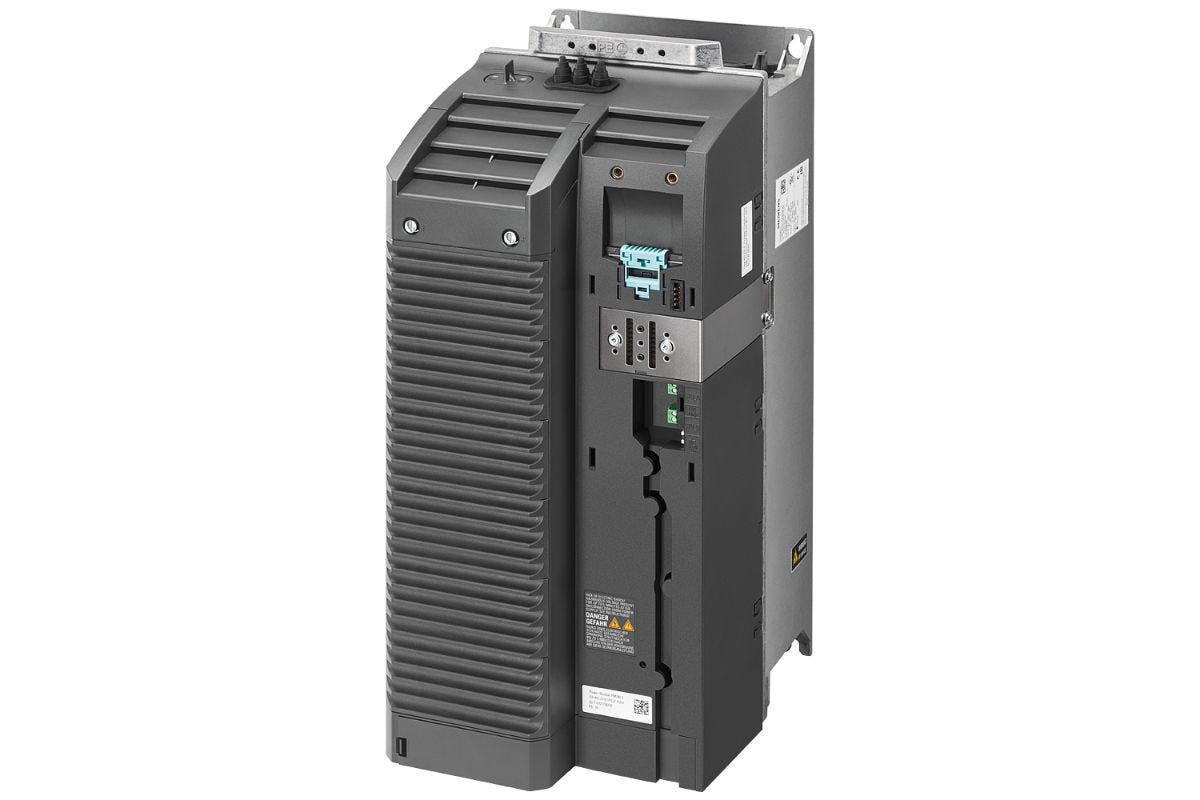

SINAMICS G120 POWER MODULE PM240-2
6SL3210-1PE24-5UL0
  • Get up to 90 days payment terms from 500+ suppliers
  • Reselling discounts up to 40%!
Sign-Up
€2,710.40
1
Payment methods:
A total of 25 Parts In-Stock from 22 Distributors

Description

ActiveRoHS Compliant
SINAMICS G120 POWER MODULE PM240-2 without filter with built in braking chopper 3AC380-480v +10/-20% 47-63HZ output high overload 18.5KW for 200% 3s,150% 57s,100% 240s ambient temp -20 to +50 deg c (ho) output low overload 22KW for 150% 3s,110% 57s,100% 240s ambient temp -20 to +40 deg c (lo) 472 x 200 x 237 (hxwxd), fsd protection IP20 without control unit and panel approved for cu firmware- version v4.7 hf8

Additional Information

Part Number
6SL3210-1PE24-5UL0
UPC
804766090837
Tariff Code
8504409570
Country of Origin
DE
ETIM
Group Code : EG000017
Group Description : Low-voltage Industrial Components
Class Description : Frequency converter =< 1 kV
Class Code : EC001857
Version : 7

Specifications

Brand
SINAMICS
Depth
237 millimetre
Width
200 millimetre
Height
472 millimetre
Input phase number
3
Net weight
16 kilogram
Protection type IP
IP20
Output phases, number of
3
Max. mains voltage
480 volt
Min. network voltage
380 volt
Rated output voltage
400 volt
Brake chopper integrated
true
Rated output current
45 ampere
Max. output frequency
550 hertz
Description of product type
PM240-2
Design of frequency changer
U converter
Power loss, static, current-independent [Pls]
27 watt
Relative symmetric mains voltage tolerance
10 percent
Relative symmetric mains frequency tolerance
5 percent
Max. output power with square load at rated output voltage
22 kilowatt
Max. output power with linear load and rated output voltage
19 kilowatt
Country of Origin
DE
