6SL3225-0BE31-1AA1

1 / 1

Description

ActiveRoHS Compliant

SINAMICS g120 power module pm250 with built in cl. a filter possibility of regeneration 3AC380-480v +10/-10% 47-63HZ output high overload 11KW for 200% 3s,150% 57s,100% 240s ambient temp -10 to +50 deg c output light overload 15KW for 150% 3s,110% 57s,100% 240s ambient temp -10 to +40 deg c 334 x 189 x 185 (hxwxd), fsc protection IP20 without control unit and bop

Country of Origin: GB
Part Number: 6SL3225-0BE31-1AA1
Tariff Code: 85044086
EAN: 4019169458726
UPC: 040892694079

ETIM

Group Code : EG000017

Group Description : Low-voltage Industrial Components

Class Description : Frequency converter =< 1 kV

Class Code : EC001857

Version : 7

€2,618.17

net

€2,909.08

Shipping from:

€80.00

1

Payment methods:

Best offer from:: Trusted Automa.Net Supplier
Availability:: 1 pc.
In-Stock
Updated at: 21-11-2024
Warranty:: 24 months
Estimated Delivery:: 02-04 December to United Kingdom
Condition:: Refurbished

Refurbished - A refurbished item inspected, cleaned, and repaired to full working order by either the manufacturer or a certified technician. The item is in excellent condition and fully operational.

A total of 4 Parts In-Stock from 2 Distributors

Secure Payment Process

Return & Refund Policies

Shipping Policies

Warranty Policies

Available Offers (2)

In-Stock offers

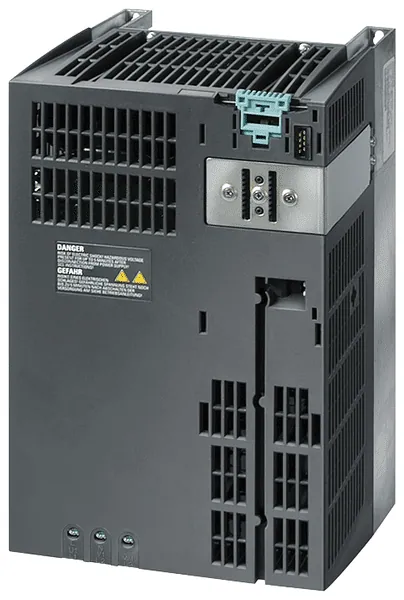

6SL3225-0BE31-1AA1 product image

Siemens

6SL3225-0BE31-1AA1

Condition:: New Surplus
Available:: 1 pc.
In-Stock
Updated at: 21-11-2024

Offer from:: Trusted Automa.Net Supplier
Estimated Delivery:: 02-04 December to United Kingdom
Warranty:: 24 months

1

€3,491.95

€3,142.75

net

Shipping from:

€80.00

6SL3225-0BE31-1AA1 product image

Siemens

6SL3225-0BE31-1AA1

Condition:: Used
Available:: 2 pcs.
In-Stock
Updated at: 21-11-2024

Offer from:: Trusted Automa.Net Supplier
Estimated Delivery:: 28-29 November to United Kingdom
Warranty:: 24 months

1

€2,300.00

€2,070.00

net

Free Shipping!

Offer with manufacturer lead time

Ships in:On Request

Best price:

€1,630.11

Specifications

Depth: 185 mm
Width: 189 mm
Height: 334 mm
Mains voltage: 380 V
Number of phases input: 3
Number of phases output: 3
Max. output frequency: 550 Hz
Type of converter: U converter
Degree of protection (IP): IP20
Nominal output current I2N: 32 A
4-quadrant operation possible: true
Application in industrial area permitted: true
Relative symmetric net frequency tolerance: 5 %
Relative symmetric net voltage tolerance: -10 %
Country of Origin: GB
Max. output at linear load at rated output voltage: 11 kW
Max. output at quadratic load at rated output voltage: 15 kW
