Siemens

6SL3544-0FB20-1PA0

1 / 2
thumbnail
thumbnail

Description

ActiveRoHS Compliant

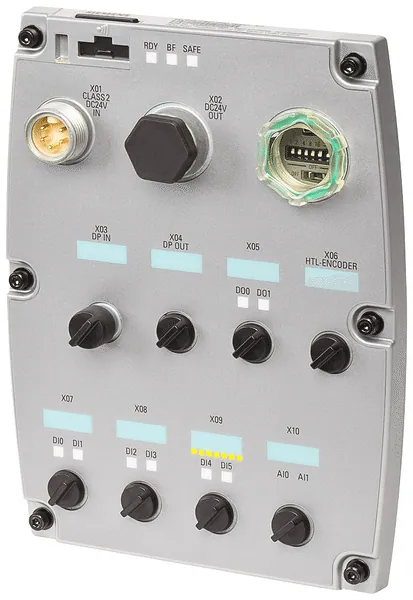

SINAMICS g120d control unit cu240d-2 dp PROFIBUS dp and sto on-board 6 di/1 f-di, 2 do, 2 ai usb interface sd/mmc-interface htl-encoder interface protection IP65 ambient temp -10 to +55 deg c without power module
Country of Origin
GB
Part Number
6SL3544-0FB20-1PA0
Tariff Code
85049090
EAN
4042948661581
UPC
040892955699
ETIM
Group Code : EG000017
Group Description : Low-voltage Industrial Components
Class Description : Frequency converter =< 1 kV
Class Code : EC001857
Version : 7
€479.16
net
€532.40
Free Shipping!
1
Payment methods:
Best offer from:
ITTrusted Automa.Net Supplier
Availability:
3 pcs.
In-Stock
Updated at: 21-11-2024
Warranty:
12 months
Estimated Delivery:
27-29 November to United Kingdom
Condition:
New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
Shipping Information
Secure Payment Process
Return & Refund Policies
Shipping Policies
Warranty Policies

Specifications

Country of Origin
GB
Depth
55 mm
Width
153 mm
Height
208 mm
With PC connection
true
Number of digital inputs
6
Number of analogue inputs
2
Number of digital outputs
2
With optical interface
true
Number of HW-interfaces USB
1
Degree of protection (IP)
IP65
Number of HW-interfaces other
0
Number of interfaces PROFINET
0
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces parallel
11
Number of HW-interfaces serial TTY
0
Supporting protocol for PROFIBUS
true
Supporting protocol for PROFIsafe
true
Application in industrial area permitted
true
Number of HW-interfaces industrial Ethernet
0
