Siemens 6SL3210-1NE23-2UG1

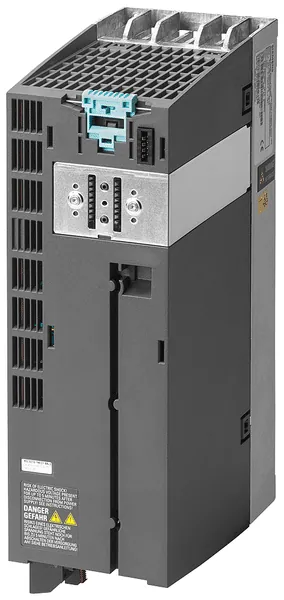

The PM230 Power Module operates within a mains voltage range of 380 V and features three-phase input and output configurations. This device delivers a maximum output frequency of 550 Hz and is classified under the U converter type. With a nominal output current of 32 A, it supports low overload conditions, providing 15 kW for quadratic loads. The module is designed for unfiltered operation, ensuring reliability in various industrial settings.

Measuring 355 mm in height, 140 mm in width, and 165 mm in depth, the PM230 is equipped with an IP20 degree of protection. It is rated for ambient temperatures from 0 to +40 degrees Celsius. Notably, this power module does not integrate a breaking resistance and cannot operate in four-quadrant mode. The module is approved for use with firmware version v4.4 or higher for CU240B/E-2 and CU230P-2 control units.
