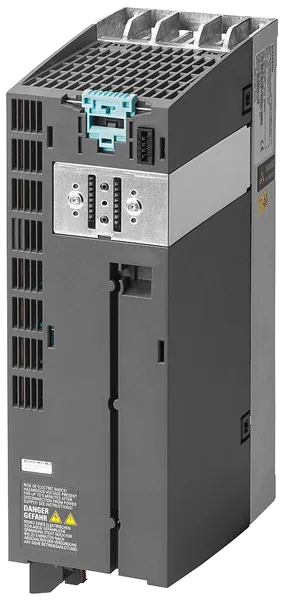

Siemens 6SL3210-1PB13-0AL0

The SINAMICS g120 power module pm240-2 is a robust solution designed to handle demanding applications. It features an integrated Class A filter and braking chopper for efficient power management. This module operates on a 1/3AC 200-240V supply with a frequency range of 47-63Hz, providing high overload capacity at various ambient temperatures.

The module offers an output power of 0.37kW at 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds under high overload conditions. It also provides a low overload capacity of 0.55kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds under lower load conditions.

The module is designed to operate in ambient temperatures ranging from -10°C to +50°C under high overload conditions and from -10°C to +40°C under low overload conditions. It has a compact design with dimensions of 196 x 73 x 165 mm (HxWxD), offering FSA degree of protection IP20 without the need for a control unit or panel.

The module is firmware-version v4.6 approved and ready for use. It is an ideal choice for applications requiring reliable power management and efficient energy utilization.
