Siemens
6SL3210-1PE24-5AL0

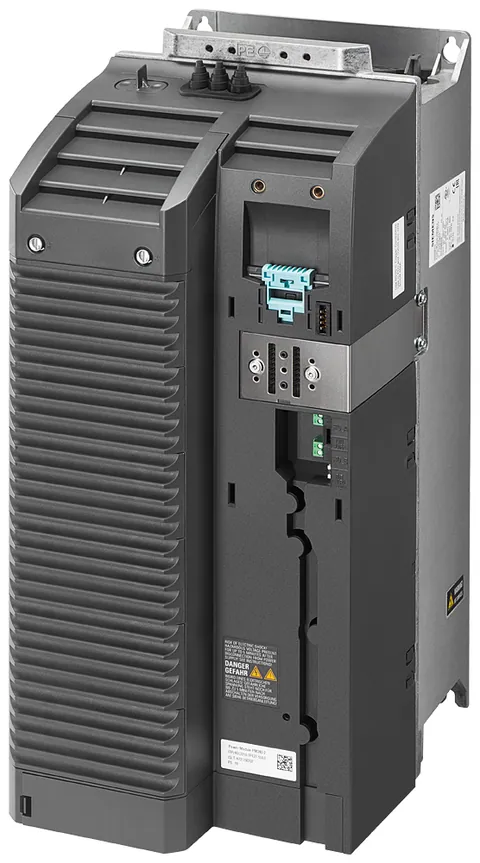

SINAMICS PM240-2 IP20-FSD-A-400V-22KW
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
£1,266.22
1
Payment methods:
A total of 62 Parts In-Stock from 33 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€1,750.89
Description
ActiveRoHS Compliant
SINAMICS g120 power module pm240-2 with built in cl. a filter with built in braking chopper 3AC380-480v +10/-20% 47-63HZ output high overload 18.5KW for 200% 3s,150% 57s,100% 240s ambient temp -20 to +50 deg c (ho) output low overload 22KW for 150% 3s,110% 57s,100% 240s ambient temp -20 to +40 deg c (lo) 472 x 200 x 237 (hxwxd), fsd protection IP20 without control unit and panel approved for cu firmware- version v4.7 hf8Additional Information
- Part Number
- 6SL3210-1PE24-5AL0
- UPC
- 804766090820
- Tariff Code
- 8504409540
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Brand
- SINAMICS
- Depth
- 237 millimetre
- Width
- 200 millimetre
- Height
- 472 millimetre
- Input phase number
- 3
- Net weight
- 18 kilogram
- Protection type IP
- IP20
- Output phases, number of
- 3
- Max. mains voltage
- 480 volt
- Min. network voltage
- 380 volt
- Rated output voltage
- 400 volt
- Brake chopper integrated
- true
- Rated output current
- 45 ampere
- Max. output frequency
- 550 hertz
- Description of product type
- PM240-2
- Design of frequency changer
- U converter
- Use in the industrial area permissible
- true
- Power loss, static, current-independent [Pls]
- 27 watt
- Relative symmetric mains voltage tolerance
- 10 percent
- Relative symmetric mains frequency tolerance
- 5 percent
- Max. output power with square load at rated output voltage
- 22 kilowatt
- Max. output power with linear load and rated output voltage
- 19 kilowatt
- Country of Origin
- DE
