Siemens 6SL3210-1PE27-5UL0

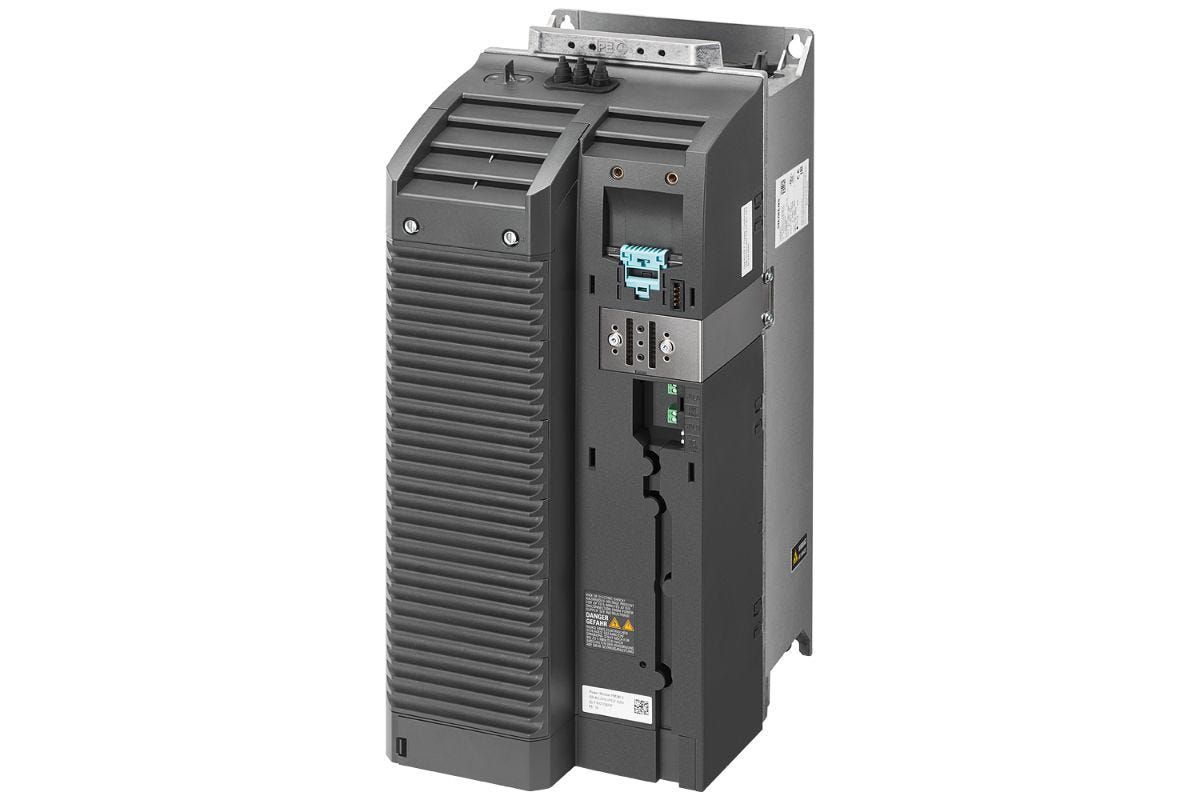

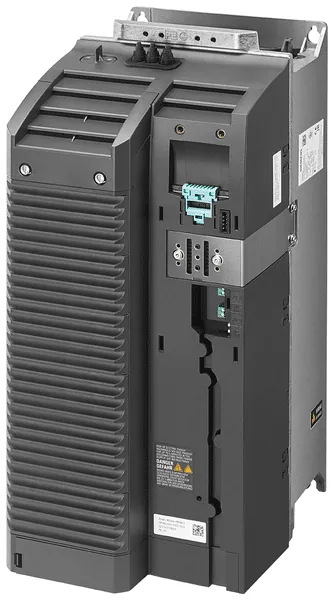

The SINAMICS G120 POWER MODULE PM240-2 UNF is a robust power module designed for high performance applications. It features a built-in braking chopper that enhances its efficiency and reliability. This module operates at 3AC380-480V with a frequency range of 47-63HZ, providing a high overload capacity of up to 30KW for 200% within 3 seconds, 150% within 57 seconds, and 100% within 240 seconds. The module is designed to operate in ambient temperatures ranging from -20 to +50 degrees Celsius (HO).

For low overload applications, the SINAMICS G120 POWER MODULE PM240-2 UNF offers a capacity of up to 37kW for 150% within 3 seconds, 110% within 57 seconds, and 100% within 240 seconds. It is designed to operate in ambient temperatures ranging from -20 to +40 degrees Celsius (LO). The module measures 472 x 200 x 237 mm and comes with FSD protection, IP20 rating, without a control unit and panel. It is approved for CU firmware- version v4.7 HF8.
