Siemens 6SL3210-1PH22-7AL0
SINAMICS PM240-2 IP20-FSD-A-690V-22KW
1 / 2

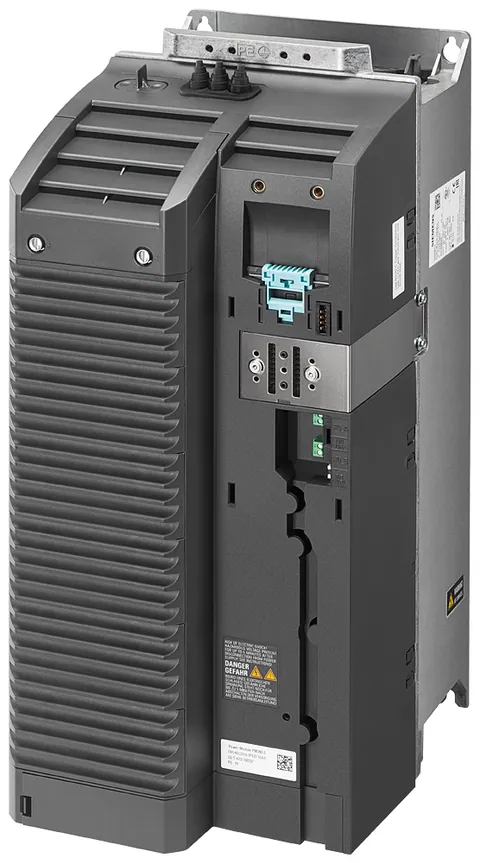

Manufacturer catalogue image
:fill(white):quality(80)/media/thumbor)
Product Description
RoHS CompliantLifecycle Status:
Key Features:
The SINAMICS G120 POWER MODULE PM240-2 is equipped with a built-in CL. A filter and braking chopper, offering a robust solution for high-performance applications. With a voltage range of 3AC500-690V +10/-20% at 47-63HZ, this module provides reliable power output.
Overload Capabilities:
The high overload capacity is 18.5KW for 200% 3S, 150% 57S, and 100% 240S at an ambient temperature range of -20 to +50°C (HO). For low overload, the module can handle 22KW for 150% 3S, 110% 57S, and 100% 240S at an ambient temperature range of -20 to +40°C (LO).
Dimensions and Protection:
The module has dimensions of 472 x 200 x 237mm (HxWxD) and offers FSD protection with an IP20 rating, without the need for a control unit or panel. It is approved for CU firmware-version V4.7 HF8.
Send Inquiry
Payment methods:
Offer details
- Best offer from:
Trusted supplier — Poland, member since 2023, 50–99 employees- Availability:
- 5 pcs.In-StockUpdated at: 05-09-2026
- Warranty:
- 24 months
- Condition:
- New Factory Sealed
New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.
The Seller is responsible for shipping the product and invoicing
Specifications
- Brand
- Siemens
- Input phase number
- 3
- Protection type IP
- IP20
- Output phases, number of
- 3
- Max. mains voltage
- 690 volt
- Min. network voltage
- 500 volt
- Rated output voltage
- 690 volt
