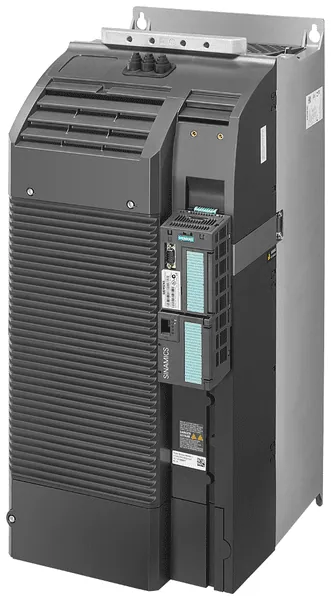

Siemens 6SL3210-1RE31-8UL0

The PM240P-2 Power Module is designed for unfiltered three-phase operation at 380-480V with a frequency range of 47-63 Hz. It features a high overload capacity of 75kW for a duration of 60 seconds at 150% load and 240 seconds at 100% load, applicable within ambient temperatures ranging from -20 to +50 degrees Celsius.

For low overload scenarios, the module can handle outputs of 90kW for 135% load for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, with ambient temperature limits of -20 to +40 degrees Celsius. The physical dimensions are 708mm in height, 305mm in width, and 357mm in depth.

It maintains a protection rating of IP20, is approved for CU firmware version V4.7 SP6 HF1, and does not include a control unit or panel. This module is engineered for robust operation in various industrial applications.
