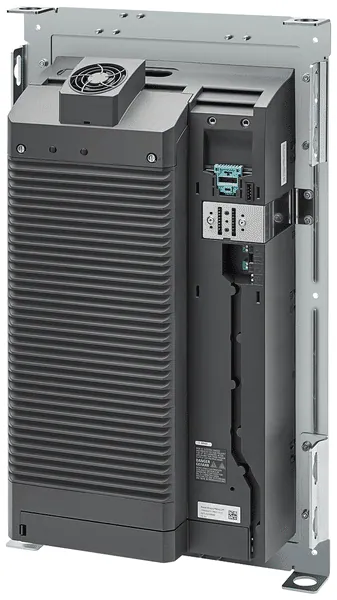

Siemens 6SL3211-1PE31-1AL0

The PM240-2 Power Module is engineered for the SINAMICS G120 series, supporting a voltage range of 3AC380-480V with a tolerance of +10/-20% at 47-63 Hz. It incorporates a built-in Class A filter and braking chopper, providing reliable performance in various operational conditions.

This power module is capable of handling high overload outputs of 45 kW for 200% for 3 seconds, 150% for 57 seconds, and 100% for 240 seconds at an ambient temperature of -20 to +50 degrees Celsius. For lower overload outputs, it supports 55 kW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, with an ambient temperature range of -20 to +40 degrees Celsius.

With dimensions of 615 mm in height, 354 mm in width, and 237 mm in depth, it offers an IP20 protection rating. This module is approved for CU firmware version V4.7 SP6 and is suitable for industrial applications, although not permitted for domestic or commercial use. The maximum output frequency is 550 Hz, with a nominal output current of 110 A.
