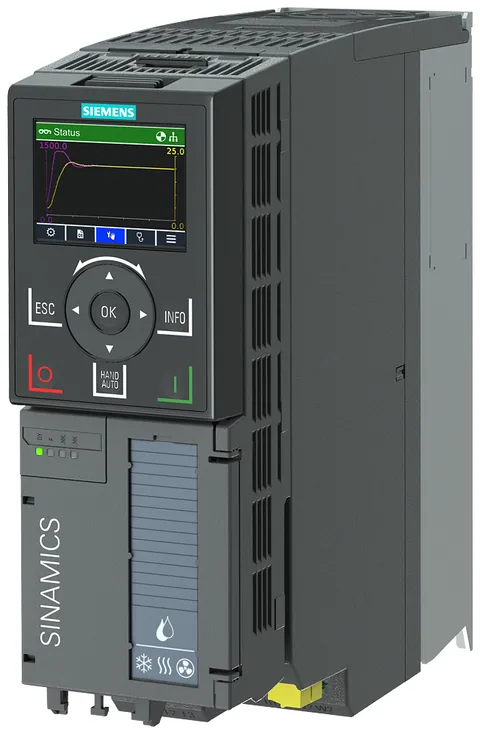

Siemens 6SL3220-1YE14-0AF0

The SINAMICS G120X is a variable frequency drive rated at 1.5 kW, functioning efficiently within the voltage range of 380 to 480 V AC. This device operates on a three-phase system and is equipped with a radio interference suppression filter compliant with category C2 standards.

With a nominal output current of 4.3 A and a maximum output frequency of 550 Hz, the G120X is designed to cater to diverse industrial requirements. The unit has dimensions of 73 mm in width, 209 mm in depth, and 232 mm in height, and it operates optimally in ambient temperatures ranging from -20 to +45 °C. The degree of protection is classified as IP20, ensuring suitability for specific environments.

This model features an integrated PROFINET PN interface and an Ethernet IP interface, facilitating communication in industrial networks. It includes six digital inputs and two analogue inputs, along with one analogue output. Notably, the device supports TCP/IP and EtherNet/IP protocols, enhancing connectivity options.

For ease of use, the G120X does not come with an operator panel or IO expansion but is compatible with preferred spare part type 6SL3220-3YE14-0AF0. The product falls under the designation code SIOS 109761925.
