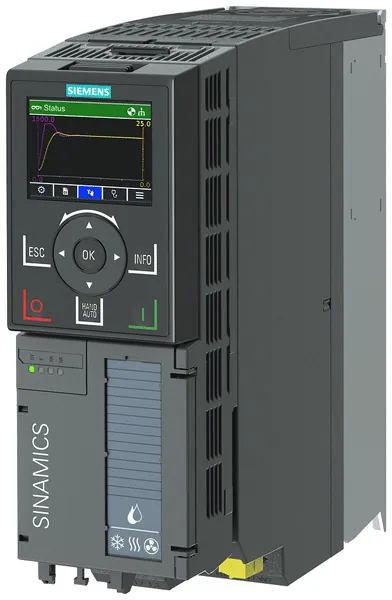

Siemens 6SL3220-1YE16-0AB0

The SINAMICS G120X is a frequency converter with a rated power of 2.2 kW, capable of withstanding 110% load for 60 seconds and 100% load for 240 seconds. It operates within a mains voltage range of 380-480 V with a frequency of 47-63 Hz. The ambient temperature range for operation is between -20 °C and +45 °C, and the device features a degree of protection rated at IP20, making it suitable for indoor installation.

This model includes built-in fieldbus capabilities supporting MODBUS RTU and BACnet MS/TP protocols. It has a total of six digital inputs, two analog inputs, and one analog output, providing flexibility for various industrial applications. The G120X also integrates a radio interference suppression filter compliant with category C2 standards.

In terms of dimensions, the unit measures 73 mm in width, 209 mm in depth, and 232 mm in height, while the nominal output current is rated at 6.1 A. The converter operates on a three-phase input and output configuration, with a maximum output frequency of 550 Hz. The model is designed for industrial applications and is not intended for domestic use.
