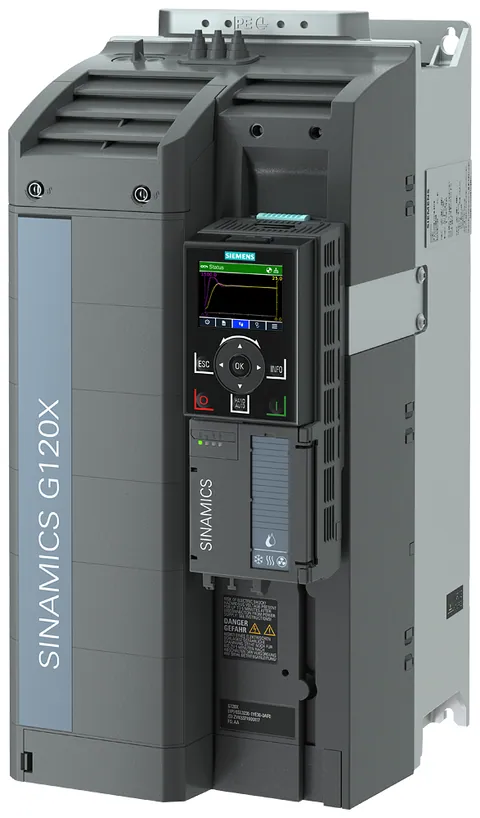

Siemens 6SL3220-2YE34-0UF0

The G120X is designed to deliver a rated power of 30 kW, with a capability to handle output at a maximum frequency of 550 Hz. It operates on a three-phase input supply with a mains voltage of 380 V and frequency range of 50/60 Hz. With a degree of protection rated at IP20, this unit is suitable for various environments while maintaining operational integrity.

In terms of dimensions, the unit measures 239 mm in depth, 200 mm in width, and 472 mm in height. It is equipped with multiple interfaces, including two PROFINET connections and an EtherNet/IP support, facilitating integration into modern industrial automation systems. The G120X can provide a maximum output of 22 kW at linear load and 30 kW at quadratic load, accommodating diverse application requirements.

This model is categorized under Designation Code: 6SL3220-3YE34-0UF0, ensuring compatibility with specific spare parts. The ambient temperature range for operation is from -20 to +45 °C, making it versatile for various operational settings.
