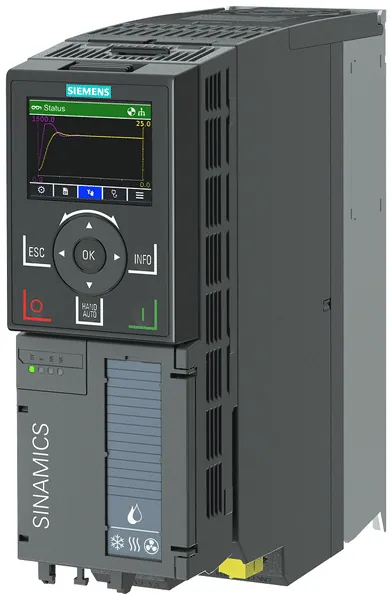

Siemens 6SL3220-3YE16-0UP0

The SINAMICS G120X is designed for operation with rated power of 2.2 kW. It functions effectively at 110% for a duration of 60 seconds and at 100% for 240 seconds. This drive accepts a mains voltage of 380-480 V with a tolerance of +10/-20%, and operates within a frequency range of 47-63 Hz. The unit is suitable for ambient temperatures ranging from -20 to +45 °C.

Measuring 73 mm in width, 209 mm in depth, and 232 mm in height, the G120X features a degree of protection rated at IP20 and is categorized as a UL open type device. The paint finish is specified as 3C2.

Integrated with a PROFIBUS DP fieldbus, this model does not include an Intelligent Operator Panel or I/O expansion capability. It is equipped with 6 digital inputs, 2 analogue inputs, and 1 analogue output. The drive supports a maximum output frequency of 550 Hz and can handle a nominal output current of 6.1 A. Additionally, it provides a variety of hardware interfaces, including 1 RS-232 and 1 RS-485 interface, among others.

Spare part compatibility includes the preferred type 6SL3220-3YE16-0UF0 within the MLFB 6SL32.0-.YE16-.UF0. It is important to note that the application in industrial areas is not permitted for this unit.
