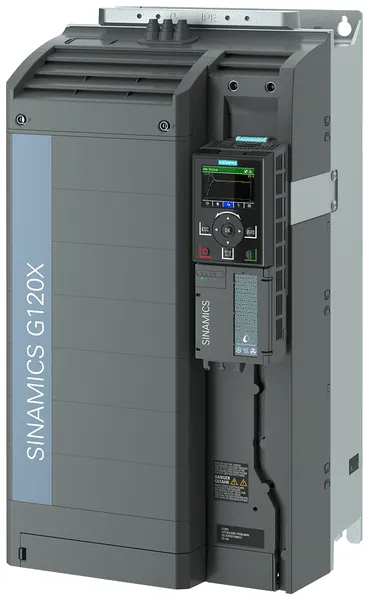

Siemens 6SL3220-3YE38-0UF0
G120X IP20 380-480V 45kW FSE UF
Product Description
The SINAMICS G120X operates with a rated power of 45 kW, handling input voltages from 380 to 480 V with a tolerance of +10% to -20%. This device is suitable for 3-phase AC supply and functions effectively within a frequency range of 47-63 Hz.
Featuring a compact design, the dimensions of the unit are 275 mm in width, 239 mm in depth, and 551 mm in height, with a degree of protection rated at IP20. It operates within an ambient temperature of -20 to +45 °C, making it suitable for various environments.
Fieldbus integration is provided for PROFINET PN and Ethernet IP, enhancing connectivity options. The drive includes an Intelligent Operator Panel and does not support IO expansion. The nominal output current is rated at 93 A, with a maximum output frequency of 550 Hz.
Additional specifications include two analogue inputs and one analogue output, along with six digital inputs. The drive also supports protocols for TCP/IP and EtherNet/IP, facilitating communication in industrial applications.
For maintenance and replacement, the preferred spare part type is 6SL3220-3YE38-0UF0.
Offer details
- Best offer from:
Trusted supplier — Italy, member since 2021, 10–19 employees- Availability:
- 0 pcs.On RequestUpdated at: 14-09-2026
- Warranty:
- 12 months
- Condition:
- New Factory Sealed
Specifications
- Brand
- Siemens
- Mains voltage
- 380 V
- Mains frequency
- 50/60 Hz
- Number of phases input
- 3
- With PC connection
- Number of phases output
- 3
- Number of digital inputs
- 6
