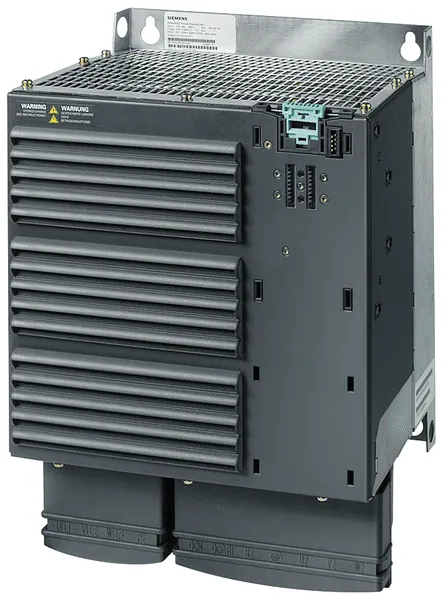

Siemens 6SL3225-0BE32-2UA0
Power Module PM250 for SINAMICS G120, 22KW
Product Description
The Power Module PM250 for SINAMICS G120 is configured for 3-phase input with a voltage range of 380-480V and a frequency of 47-63Hz. It features high overload capabilities, allowing for a maximum output of 22KW under 200% load for 3 seconds, 150% load for 57 seconds, and 100% load for 240 seconds. The ambient temperature range for operation is between -10 and +50 degrees Celsius.
Additionally, the module supports light overload conditions, enabling a peak output of 30KW at 150% for 3 seconds, 110% for 57 seconds, and 100% for 240 seconds, with a lower ambient temperature limit of 40 degrees Celsius. The dimensions of the unit are 419mm in height, 275mm in width, and 204mm in depth, and it offers IP20 protection. The module is designed for use without a control unit and BOP, with a nominal output current rating of 60A.
Need more information?
Offer details
- Offer from:
Trusted supplier — Germany, member since 2024 - Availability:
- 2 pcs.Updated at: 15-09-2026In-Stock
- Warranty:
- 24 months
- Condition:
- New Surplus
Specifications
- Brand
- Siemens
- Mains voltage
- 380 V
- Number of phases input
- 3
- Number of phases output
- 3
- Max. output frequency
- 550 Hz
- Type of converter
- U converter
- Degree of protection (IP)
- IP20
Available Offers
(5)| Condition | Availability | Supplier | Warranty | Action | |
|---|---|---|---|---|---|
 | Condition New Surplus | Availability 2 pcs. Updated at: 15-09-2026In-Stock | SupplierGermanyTrusted supplier — member since 2024 | Warranty 24 months | |
:fill(white):quality(80)/media/thumbor) | Condition New Factory Sealed | Availability 5 pcs. Updated at: 16-09-2026In-Stock | Supplier PolandTrusted supplier — member since 2023, 50–99 employees | Warranty 24 months | |
 | Condition New Surplus | Availability On requestLead time: 30 days | Supplier NetherlandsTrusted supplier — member since 2021, 100–499 employees | Warranty 24 months | |
| Condition New Factory Sealed | Availability On requestLead time: 30 days | SupplierGermanyTrusted supplier — member since 2024 | Warranty Not specified | |
 | Condition New Factory Sealed | Availability On requestLead time to be confirmed | Supplier ItalyTrusted supplier — member since 2021, 10–19 employees | Warranty 12 months |
Offer with manufacturer lead time
Directly from the manufacturer - with a confirmed, predictable, and fully transparent delivery time.
Documents
Data Sheet
Datasheet for Siemens 6SL3225-0BE32-2UA0, including specifications and features.
CAD Models
3D CAD model and technical drawings, ready for your design software.
Product data updated: 15-09-2026
