Siemens
6SL3225-0BE33-0AA0

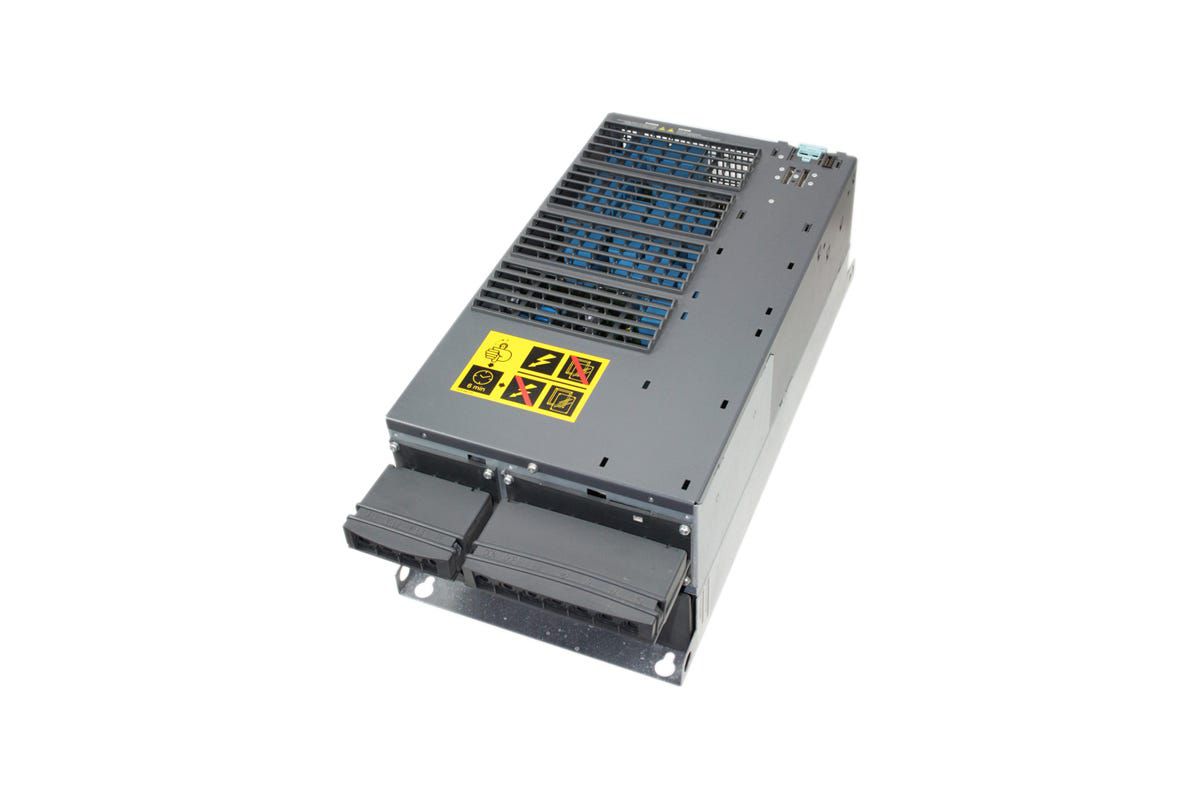

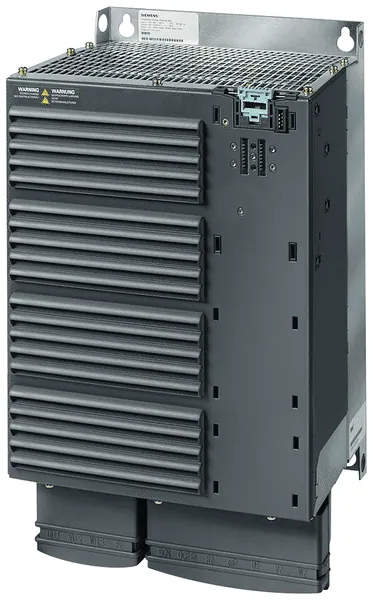

SINAMICS G120, PM250_FSE_400V_FLT, 30KW
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
€2,008.10
1
Payment methods:
A total of 104 Parts In-Stock from 33 Distributors
Product Conditions:
Offer with manufacturer lead time
Ships in:On Request
Best price:
€3,405.92
Description
ActiveRoHS Compliant
SINAMICS g120 power module pm250 with built in cl. a filter possibility of regeneration 3AC380-480v +10/-10% 47-63HZ output high overload 30KW for 200% 3s,150% 57s,100% 240s ambient temp -10 to +50 deg c output light overload 37KW for 150% 3s,110% 57s,100% 240s ambient temp -10 to +40 deg c 635 x 275 x 204 (hxwxd), fse protection IP20 without control unit and bopAdditional Information
- Part Number
- 6SL3225-0BE33-0AA0
- UPC
- 662643434682
- Tariff Code
- 8504409540
- Country of Origin
- DE
- ETIM
- Group Code : EG000017
- Group Description : Low-voltage Industrial Components
- Class Description : Frequency converter =< 1 kV
- Class Code : EC001857
- Version : 7
Specifications
- Depth
- 204 mm
- Width
- 275 mm
- Height
- 635 mm
- Mains voltage
- 380 V
- Number of phases input
- 3
- Number of phases output
- 3
- Max. output frequency
- 550 Hz
- Type of converter
- U converter
- Degree of protection (IP)
- IP20
- Nominal output current I2N
- 75 A
- 4-quadrant operation possible
- true
- Relative symmetric net voltage tolerance
- 10 %
- Application in industrial area permitted
- true
- Relative symmetric net frequency tolerance
- 5 %
- Country of Origin
- DE
- Max. output at linear load at rated output voltage
- 30 kW
- Max. output at quadratic load at rated output voltage
- 37 kW
