SMC MGPL32TF-300AZ

Name: MGP-AZ, Standard Guided Cylinder with Air Cushion, MGPL32TF-300AZ
Brand: SMC
SKU: MGPL32TF-300AZ

MGP-AZ, Standard Guided Cylinder with Air Cushion, MGPL32TF-300AZ

1 / 2

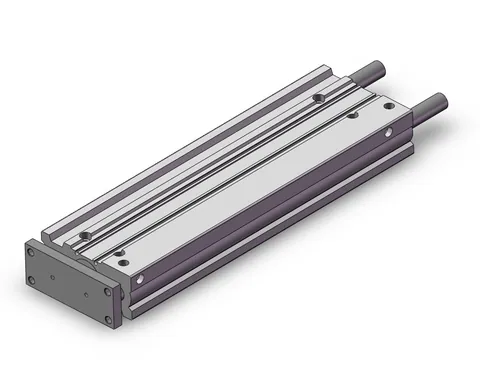

Manufacturer catalogue image

Product Description

The MGP-AZ is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The air cushions allow the guided cylinder to absorb nearly three times as much kinetic energy as standard rubber bumpers while suppressing noise and vibration at the stroke end. The (A) press fitted high precision ball bushing is suitable for minimizing the actuator s plate displacement. The (L) high precision ball bushing allows for smooth operation that ensures stable travel resistance, suitable for pushing and lifting applications. The (M) carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts, suitable for stopping applications.

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

Send Inquiry

Payment methods:

Request a Quote and we will send you information on availability and price.

Specifications

Brand: SMC
Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
(A) Press fitted high precision ball bushing non-rotating accuracy: +/-0.01 (all bore sizes)
(L) Ball bushing non-rotating accuracy: +/-0.05 (100 mm) to +/- 0.10 (16 mm)
(M) Slide bearing non-rotating accuracy: +/-0.04 (100 mm) to +/- 0.08 (16 mm)
Bearing Type: L (Ball Bushing)
Bore Size: Ø32 mm
