SMC MGPM50TF-50AZ

Name: MGP-AZ, Standard Guided Cylinder with Air Cushion, MGPM50TF-50AZ
Brand: SMC
SKU: MGPM50TF-50AZ

MGP-AZ, Standard Guided Cylinder with Air Cushion, MGPM50TF-50AZ

1 / 3

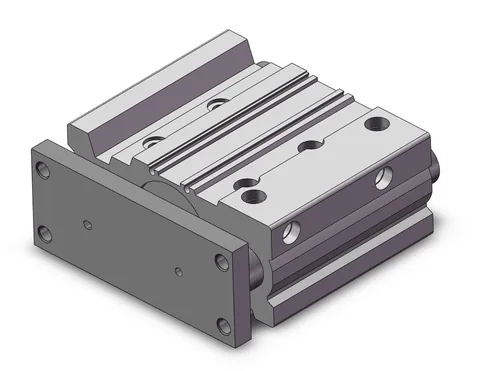

Manufacturer catalogue image

Product Description

The MGP-AZ is a compact body actuator integrated with internal guide shafts to isolate the load bearing from the movement of the actuator s rod and seals. The air cushions allow the guided cylinder to absorb nearly three times as much kinetic energy as standard rubber bumpers while suppressing noise and vibration at the stroke end. The (A) press fitted high precision ball bushing is suitable for minimizing the actuator s plate displacement. The (L) high precision ball bushing allows for smooth operation that ensures stable travel resistance, suitable for pushing and lifting applications. The (M) carbon steel alloy slide bearing provides lateral stability protecting it from side load impacts, suitable for stopping applications.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Romania, member since 2023, 1–4 employees
Availability:: 1 pc.
On Request
Updated at: 22-08-2026
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: SMC
Bore sizes: 16, 20, 25, 32, 40, 50, 63, 80, 100 mm
(A) Press fitted high precision ball bushing non-rotating accuracy: +/-0.01 (all bore sizes)
(L) Ball bushing non-rotating accuracy: +/-0.05 (100 mm) to +/- 0.10 (16 mm)
(M) Slide bearing non-rotating accuracy: +/-0.04 (100 mm) to +/- 0.08 (16 mm)
Bearing Type: M (Slide Bearing)
Bore Size: Ø50 mm
