SMC NCDGLN50-0800
NC(D)G, High Speed/Precision Cylinder, Double Acting, Single Rod, NCDGLN50-0800
1 / 2

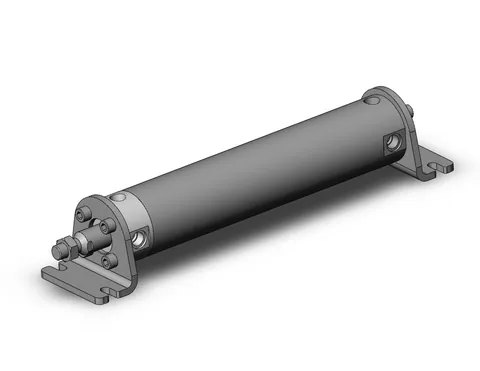

Manufacturer catalogue image

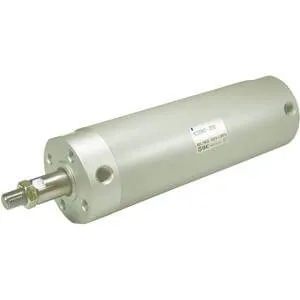

Manufacturer catalogue image
Product Description
Standard NCG double acting single rod version of the NCG series The NCG series is an extremely durable, repairable round body cylinder that provides precision mounting, short overall length, light weight and high speed. Rubber bumpers are standard with an option for adjustable air cushion. Nine mounting styles are available for cylinder mounting flexibility. Bore sizes for the NCG range from 3/4 (20mm) to 2 1/2 (63mm). Standard available stroke lengths from 1 to 12 but with the ability for long strokes. The NCG series is auto-switch capable. The NCG is capable of speeds up to 40 in/sec. The NCG series is available in 11 standard options to help fit into many different applications.
Need more information?
Call us at:+48 17 778 34 19
- Get up to 90 days payment terms from 500+ suppliers
- Reselling discounts up to 40%!
Send request for price
Payment methods:
Specifications
- Brand
- SMC
- Bore sizes
- 3/4, 1, 2, 1 1/4, 1 1/2, 2 1/2 (in)
- Mounts
- basic, foot, flange, clevis, or trunnion
- Stroke(mm)
- 8"
- Cylinder Operation Method
- [Double Acting] Double Acting
- Rod Operation Method
- Single Rods
- Main Body Shape
- Standard
Documents
Data Sheet
Datasheet for SMC NCDGLN50-0800, including specifications and features.
Download Data Sheet
CAD Models
3D CAD model and technical drawings, ready for your design software.
Download CAD Model
