Turck NI2-K08Q-0.095/0.11-BDS-2AP6X3-H1141/S34

Name: NI2-K08Q-0.095/0.11-BDS-2AP6X3-H1141/S34 Inductive Sensor, Monitoring Kit for Power Clamps
Brand: Turck
SKU: NI2-K08Q-0.095/0.11-BDS-2AP6X3-H1141/S34

NI2-K08Q-0.095/0.11-BDS-2AP6X3-H1141/S34 Inductive Sensor, Monitoring Kit for Power Clamps

1 / 2

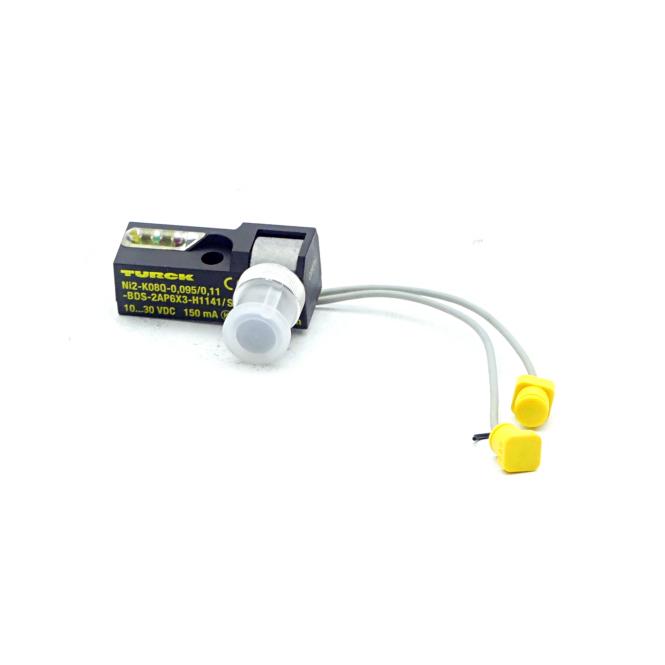

Manufacturer catalogue image

Product Description

his inductive sensor monitoring kit is specifically designed for power clamp position detection in harsh industrial environments. Featuring a rated switching distance of 1.2 mm and a compact 0.095 m cable, it includes a BDS power block with two non-flush sensors integrated into a single housing for reliable monitoring.

The unit features clearly visible LEDs for status indication and a rotatable connector (adjustable to 0°, 45°, or 90°), allowing flexible and optimized cable routing in tight or complex spaces.

Key Features:

Switching distance: 1.2 mm
Output type: 2 x NO (normally open), PNP
Connection: DC 4-wire, 10–30 VDC
Construction: Durable Trogamid plastic housing
Cable length: 0.095 m
Connector angle: Adjustable (0°, 45°, 90°)
Magnetic field resistance: Weld-resistant; handles DC/AC fields up to 100 mT

Ideal for automated clamping systems in welding and manufacturing lines, this sensor kit is engineered for high reliability, magnetic field resistance, and easy installation in demanding environments.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Germany, member since 2023
Availability:: 3 pcs.
In-Stock
Updated at: 05-09-2026
Warranty:: 12 months
Condition:: New Surplus

New Surplus - A new, unused, undamaged item without a manufacturer guarantee. The item may come without original packaging or in replacement packaging. If provided, the box may have been opened.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Turck
Output function: NO contact, PNP
Product features: BDS power block with two connected sensors and LEDs, Robust rotatable connector 0°, 45° and 90°, for optimal cable routing, Plastic, Trogamid, Resistant to magnetic fields (weld-resistant), for DC and AC fields up to 100 mT, 2 x NO contact, PNP output, DC 4-wire, 10…30 VDC
Ambient temperature: -25…+70 °C
Electrical connection: Connector, M12 × 1
Protection class: IP67
Design: Monitoring kit for power clamps
