Turck NI4-DSU35-2Y1X2-H1140

Name: NI4-DSU35-2Y1X2-H1140 Inductive Sensor, For Rotary Actuators
Brand: Turck
SKU: NI4-DSU35-2Y1X2-H1140

NI4-DSU35-2Y1X2-H1140 Inductive Sensor, For Rotary Actuators

1 / 1

Manufacturer catalogue image

Product Description

Inductive Sensor, For Rotary Actuators, Rated switching distance 4 mm, Non-flush, Rectangular, housing DSU35, Plastic, PP-GF30-VO, Two outputs for monitoring the position of rotary actuators, Mounting on all standard actuators, DC 2-wire, nom. 8.2 VDC, 2 outputs acc. to DIN EN 60947-5-6 (NAMUR), M12 x 1 male connector, ATEX category II 2 G, Ex zone 1, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — Italy, member since 2023
Availability:: 1 pc.
In-Stock
Updated at: 02-08-2026
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: Turck
Output function: NAMUR
Protection class: IP67
Product features: Rectangular, housing DSU35, Plastic, PP-GF30-VO, Two outputs for monitoring the position of rotary actuators, Mounting on all standard actuators, DC 2-wire, nom. 8.2 VDC, 2 outputs acc. to DIN EN 60947-5-6 (NAMUR), M12 x 1 male connector, ATEX category II 2 G, Ex zone 1, ATEX category II 1 D, Ex zone 20, SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 at HFT0, SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1

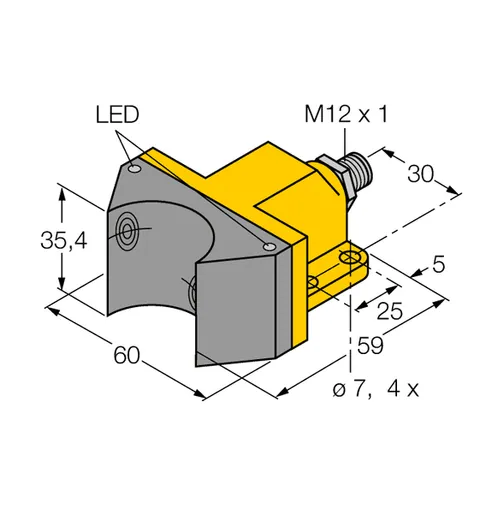

Construction size: 59 x 60 x 35.4 mm, DSU35
Switching frequency: 0.050 kHz
Ambient temperature: -25…+70 °C
