US Motors T34C1J

Name: 3/4 HP, 3450 RPM, 115/208-230 V, 60 Hz, Frame Size 56
Brand: US Motors
SKU: T34C1J

3/4 HP, 3450 RPM, 115/208-230 V, 60 Hz, Frame Size 56

1 / 2

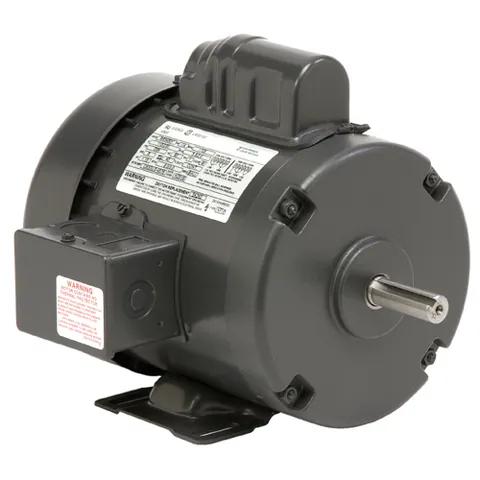

Manufacturer catalogue image

Product Description

The motor features a continuous rating of less than one horsepower, making it ideal for both industrial and HVACR applications. With a base RPM of 3450 and a frame size of 56, this motor operates on a supply voltage of 115/208-230 V at a frequency of 60 Hz.

It has a full load efficiency of 67.8% and a service factor of 1.15, which indicates its capability to handle overload conditions. The motor is designed with a rigid base mounting type and operates with a single-phase, two-pole configuration. The thermal protection is not included, and the overall length measures 11.8 inches.

This motor utilizes 6203 type bearings and has a full load torque of 17.98. Its weight is 25 pounds, and it is manufactured in Mexico. The harmonization code for this motor is 8501.40.3040. The designation code T34C1J reflects its specific model.

Send Inquiry

Payment methods:

Offer details

Best offer from:: Trusted supplier — United States, member since 2023
Availability:: 3 pcs.
In-Stock
Updated at: 05-09-2026
Warranty:: 12 months
Condition:: New Factory Sealed

New Factory Sealed - A brand-new, unused, unopened, undamaged item in its original manufacturer-sealed packaging.

The Seller is responsible for shipping the product and invoicing

Specifications

Brand: US Motors
Amps @ Voltage: 10.4/5.3-5.2
Base RPM: 3450 RPM
Bearing Type: 6203,6203
Capacitor: 519,0
Duty / Condition Type: CONT
Enclosure Type: TEFC
