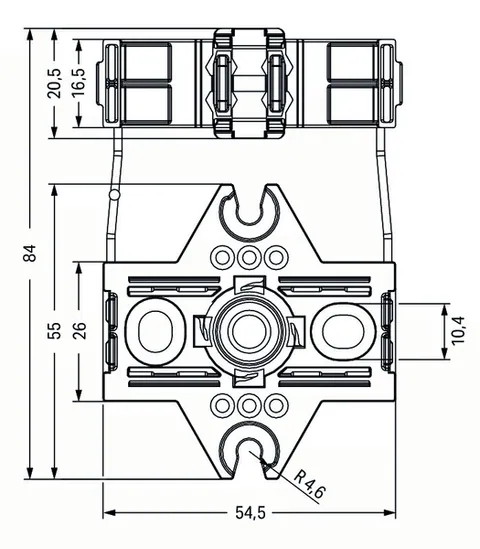

770-310

1 / 4

Part Number: 770-310
Tariff Code: 39269097900
UPC: 4055144058499

ETIM

Group Code : EG000057

Group Description : Pluggable building installation systems

Class Description : Accessories for plug-in building installation

Class Code : EC002863

Version : 7

Get up to 90 days payment terms from 500+ suppliers
Reselling discounts up to 40%!

Send request for price

1

Payment methods:

Request a Quote and we will send you information on availability and price.

Environmental Requirements

Processing temperature: -5 … +40 °C
Continuous operating temperature: -35 … +85 °C
Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C

Material Data

Note (material data): <a href="https://www.wago.com/us/material-specifications" href="_blank">Information on material specifications can be found here</a>
Color: Black
Insulation material: Polyamide (PA66)
Flammability class per UL94: V0
Fire load: 0.239 MJ
Weight: 7.960 g

Mechanical Data

Suitable: For flying leads; 2- to 5-pole

Specifications

Product Group Code: 0020

Commercial Data

Packaging type: Box
Country of origin: DE
GTIN: 4055144058499
Customs tariff number: 39269097900
